1/8 Onroad 4D Alignment Rig for Tuning - Arrowmax am-174044  [am-174044]

4D alignment rig for tuning 1/8 onroad

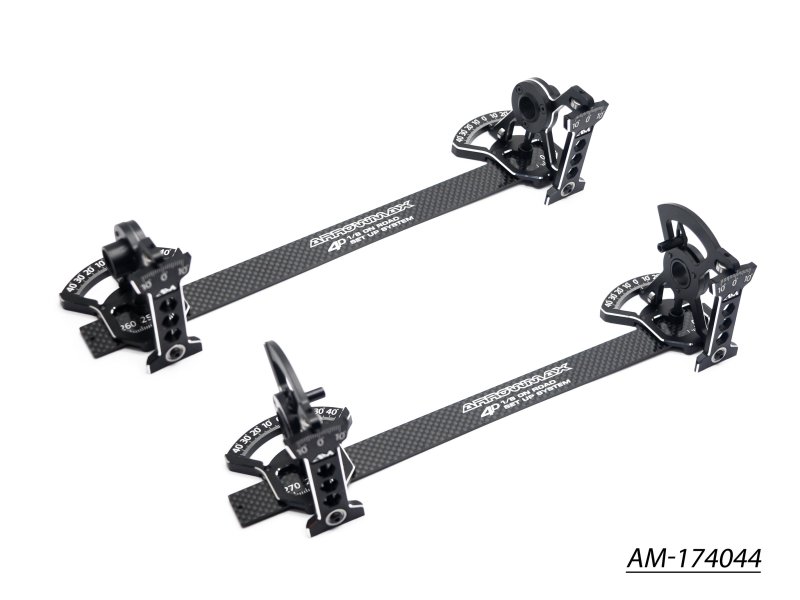

The Arrowmax am-174044 serves as a 4D setup rig tailored to 1/8 onroad models, enabling repeatable measurement and fine adjustments during tuning sessions. It targets the key alignment factors that influence handling: camber, caster, toe-in/out, track width and steering balance.

As a working tool it gives tuners a clear way to compare setups by measuring alignment before and after changes. The system is intended to reduce subjective guesswork and speed up the process of finding effective suspension and steering geometry settings.

For best practice place the rig on flat ground, align with wheel hubs or fixed chassis points, then note indicator values before adjusting links or toe blocks. Change one variable at a time and record results so you can correlate the numerical differences with handling outcomes.

This rig is aimed at enthusiasts and racers who want a structured, measurable approach to improving on-track performance through alignment tuning.
