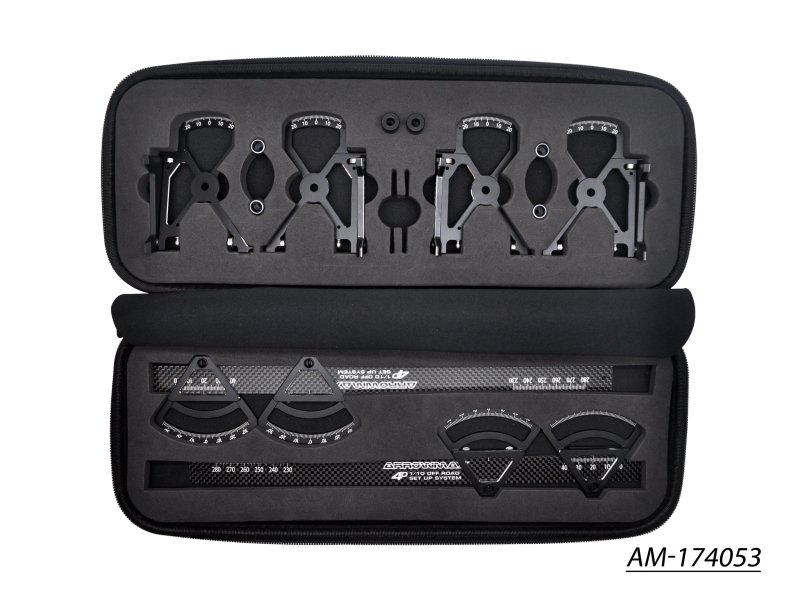

4D Alignment Set-Up System for 1/10 Off-Road – Arrowmax am-174053  [am-174053]

Trackside 1/10 Off-Road Setup Reference

The Arrowmax am-174053 4D Set-Up System is a compact reference kit for 1/10 scale off-road RC cars, designed to aid practical suspension and chassis tuning. By using 4D measurements you can check lateral symmetry and front-to-rear relationships without bespoke fixtures.

Its primary use is to establish a reliable reference plane for tasks such as camber verification, toe setting, ride height comparison and initial roll-center checks. It streamlines the process of logging changes after swapping shocks, springs or anti-roll bars so you can reproduce settings reliably.

Installation is simple and non-invasive: position the unit under the chassis or adjacent to wheel hubs as the layout requires, make sure the vehicle sits on a flat surface and use the measurement faces to note relative differences. The included bag keeps components organised and protects the precision surfaces during transport.

This product is supplied as an aid for RC model setup and should be used alongside model-specific fixtures where needed; it is intended to help with iterative tuning and trackside verification of 1/10 off-road models.
