Adaptor Board for Bantam E-Station BC5/BC6/BC6-10/PB6 (Bantam CSEAC148)  [CSEAC148]

Bench testing and pack swaps with CSEAC148

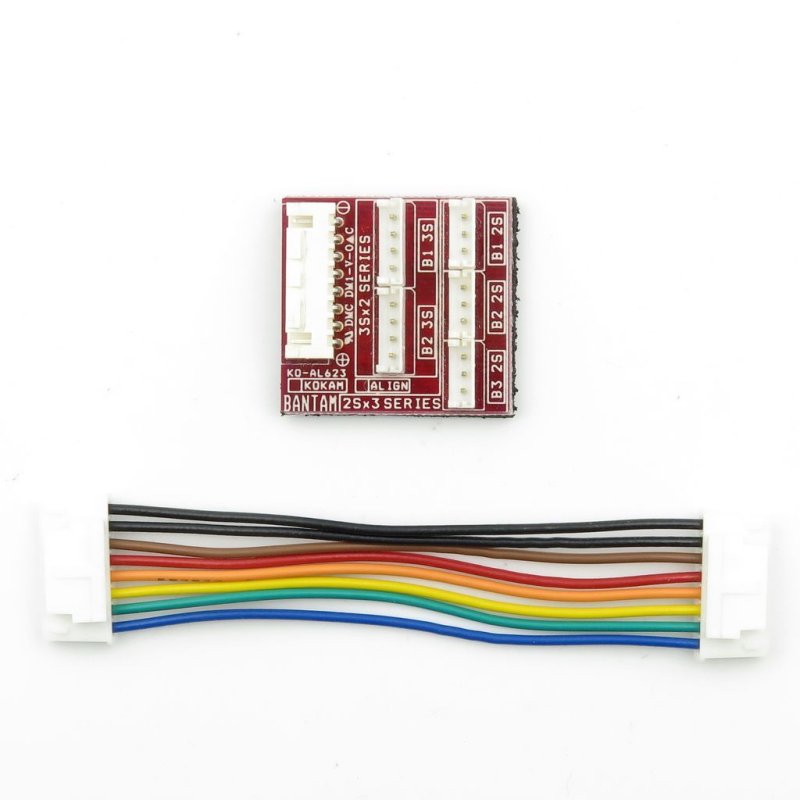

The Bantam CSEAC148 adaptor is an RC workshop accessory that bridges Kokam and Graupner balance plugs to the balance sockets on the Bantam E-Station chargers specified in the name. It allows packs with those balance connector styles to connect to BC5, BC6, BC6-10 and PB6 ports without changing the battery harness.

To fit, power the charger off, check the orientation of the balance plug, seat it straight into the adaptor and then power the charger. Confirm the cell numbering and pin alignment before charging; the adaptor only changes connector format and does not alter cell sequence.

For tuning runs and iterative bench checks the adaptor reduces downtime when switching batteries, keeping balance connections uniform while you evaluate motor and ESC behaviour on the bench.

Note: Use this board only with hobby LiPo packs for charger balance connections. Verify polarity and never use the adaptor for non-RC battery systems.
