ARRMA MINI KRATON 3S Upgrade Wheelie Bar 1mm Stainless with Bearings MAKM040R by GPM  [MAKM040R]

ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R
Price:
AUD$28.48
Brand:
GPM
Model:
MAKM040R
GTIN:
4894538412482
Condition:
Brand New
Write a review
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"

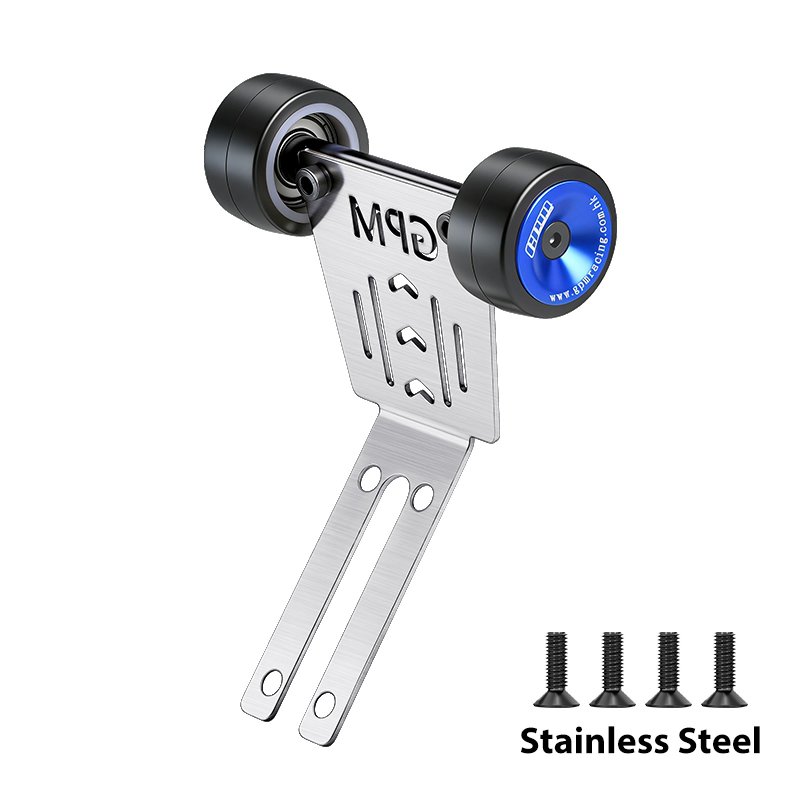

Stainless wheelie bar for MINI KRATON 3S

This aftermarket stainless steel wheelie bar is produced as a replacement part for ARRMA 1/16 MINI KRATON 3S chassis, engineered to provide strong rear support for controlled wheelies and improved impact resistance. CNC machining ensures precise 1mm thickness and consistent fit, while the fitted bearing wheels maintain rotation and help limit debris ingress to the chassis slot.

Fitting usually involves basic removal of the rear bumper assembly. The wheelie bar locks into the chassis recess with a defined footprint to reduce movement, and the supplied Grade 12.9 black screws are intended for metal-to-metal threading. Apply medium-strength thread-lock where screws engage metal threads, and use a removable locking adhesive on screws passing through the bar to preserve serviceability.

Maintenance is minimal: keep the bearing wheels free of grit and verify screw torque after initial runs. Although bearings are sealed on delivery, inspect them following off-road use and service or replace if rotation degrades.

  • Package contents include the stainless steel bearing wheelie bar with fitted bearing wheels and the set of Grade 12.9 black screws as supplied by the manufacturer.

Compatible Models

  • ARRMA 1/16 MINI KRATON 3S DSC 4X4 RTR Brushless Speed Truck-ARA2508S
  • ARRMA 1/16 MINI KRATON 3S DSC 4X4 RTR Brushless Speed Truck-ARA2508

Owners of MINI KRATON 3S who need a resilient, serviceable rear brace for wheelie control and added bumper protection will find this CNC stainless bar a practical direct-fit upgrade.

Yes, it is designed to bolt into the factory rear recess; align the bar before tightening to ensure proper clearance.
The component is CNC machined from stainless steel at approximately 1mm thickness to maintain dimensional accuracy and strength.
Use medium-strength thread-lock where screws engage metal threads; for screws entering the wheelie bar, prefer a removable adhesive so you can remove them later.
Regularly clear accumulated grit from the bearings and check for smooth rotation; service or renew bearings if you notice play or rough running after off-road use.
