Concept 30 Linkage Rod Guide Replacement for Reliability - H3209 Kyosho  [KYH3209]

Control linkage guide for Concept 30

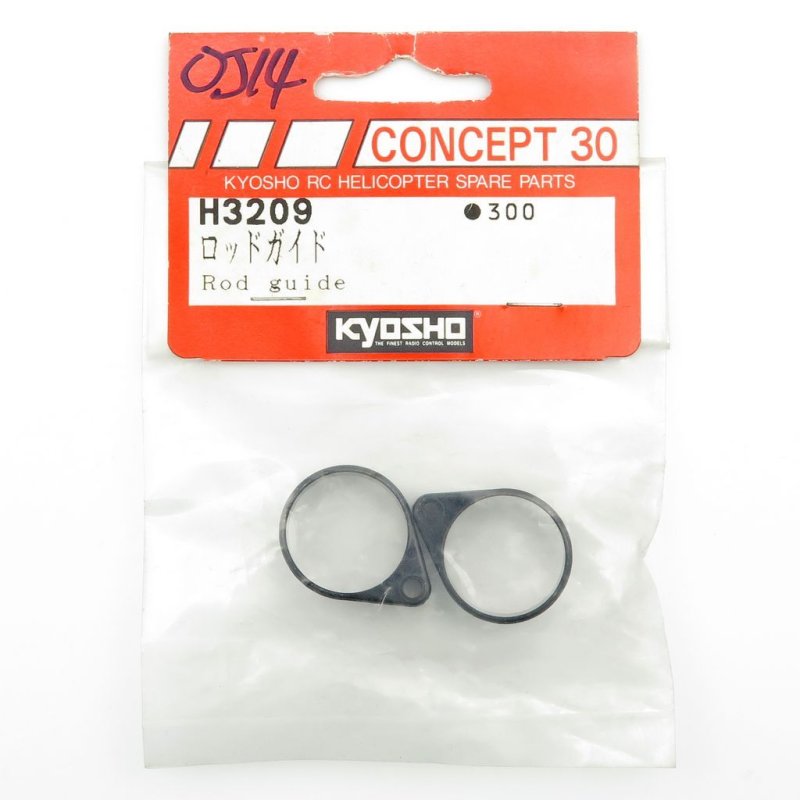

The Kyosho H3209 rod guide is supplied as an RC-scale spare part for Concept 30 helicopters, acting as a routing and support point for control rods where the original guide has worn or loosened.

Installed as a direct replacement, the guide returns the linkage to its correct path, reduces side-to-side play, and preserves the intended geometry of the control system. It is not intended to alter control ratios or enhance performance beyond restoring proper fitment.

Installation is straightforward for those familiar with Concept 30 components: remove the old guide, inspect the mounting surfaces for damage or debris, install the H3209 in the same orientation, and secure using the existing fasteners. Cycle the control rods through full travel to check for smooth, unrestricted movement before flying.

Consider the rod guide part of routine setup work: a correctly positioned guide reduces binding and helps ensure stable trim, making subsequent tuning of swashplate and tail linkages easier.
