Eagle EX Replacement Servo Frame HI0404686 for Freya and SX Models by Hirobo  [HI0404686]

HIROBO 0404-686 EAGLE EX SERVO FRAME #0404686
Price:
AUD$63.59
Brand:
Hirobo
Model:
HI0404686
GTIN:
4512895109257
Condition:
Brand New
Write a review

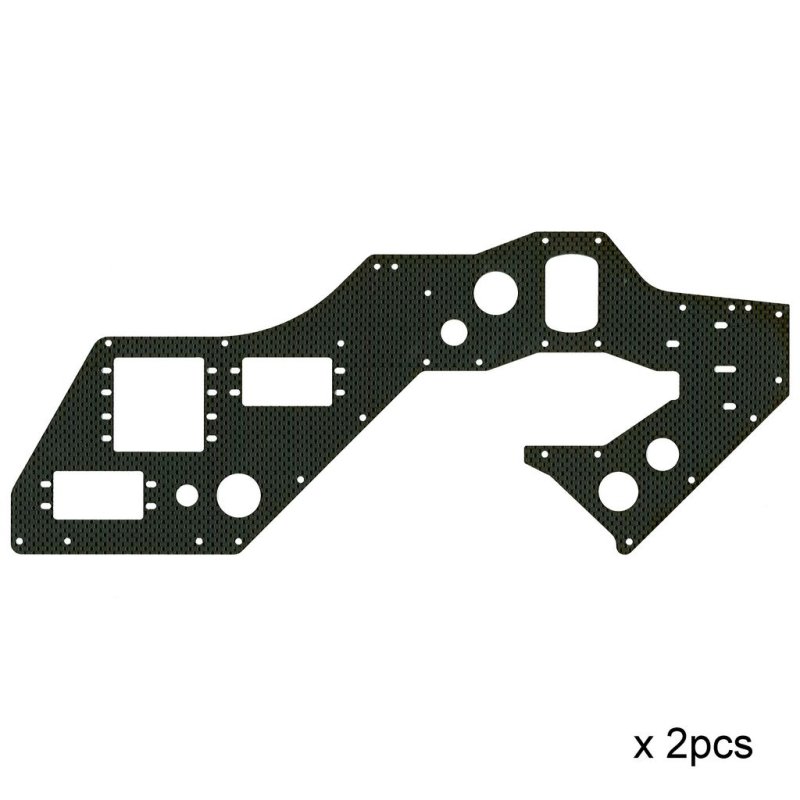

alt="HIROBO 0404-686 EAGLE EX SERVO FRAME #0404686" title="HIROBO 0404-686 EAGLE EX SERVO FRAME #0404686"

Mounting frame to aid setup and trimming

The Hirobo HI0404686 servo frame is an OEM-fit style replacement that positions a standard servo within Eagle-family airframes to ensure correct linkage geometry. Proper mounting is key to achieving repeatable control inputs during tuning.

Compatibility: compatible with Eagle, Freya, EX and SX helicopter series. Before fitting, measure the mounting hole pattern and clearance so servo horns and leads do not interfere with nearby structures.

Installation notes: secure the frame using the original screws or equivalent hardware that matches thread and length. Confirm servo orientation, keep wiring clear of moving parts, and test linkages for smooth operation and full travel before completing assembly.

Tuning impact: a firmly seated HI0404686 frame keeps the servo aligned under load, reducing slop in the control path and allowing finer trim adjustments and more consistent cyclic and collective control during test flights.

Specifications

  • Item Servo frame
  • Brand Hirobo
  • Model Number HI0404686
  • Compatibility Eagle, Freya, EX, SX helicopter series
  • Material Not specified

Fit this HI0404686 frame as a maintenance or repair part to restore correct servo mounting and preserve predictable control response for Hirobo Eagle-series helicopters.

How does the frame influence control trimming?

By maintaining rigid servo alignment, the frame reduces mechanical play, which makes small trim changes more consistent and repeatable when tuning cyclic and collective.

What checks help ensure correct servo centring?

After mounting, set the transmitter trims to neutral, power the system, and confirm the servo horn is centred with the control linkages free of preload or binding.

Can I use high-torque servos with this frame?

High-torque servos can be used if they fit the mounting pattern and the airframe tolerances allow the additional size and torque. Check screw engagement and consider reinforcing the mount if required.

What pre-flight checks relate to the servo frame?

Perform a low-throttle control sweep to verify full travel without binding, recheck screw tightness, and ensure linkages remain centred with no free play before full-power hover tests.

Does servo height affect tuning outcomes?

Yes — servo height changes control horn geometry and leverage, which alters response. Confirm the frame positions the servo at the height intended for your linkage setup to maintain predictable control feel.

How often should I recheck the mount during initial flights?

Recheck screw torque and linkage operation after the first few hover sessions and again after any hard landings to ensure the frame and servo remain properly seated for consistent tuning.
