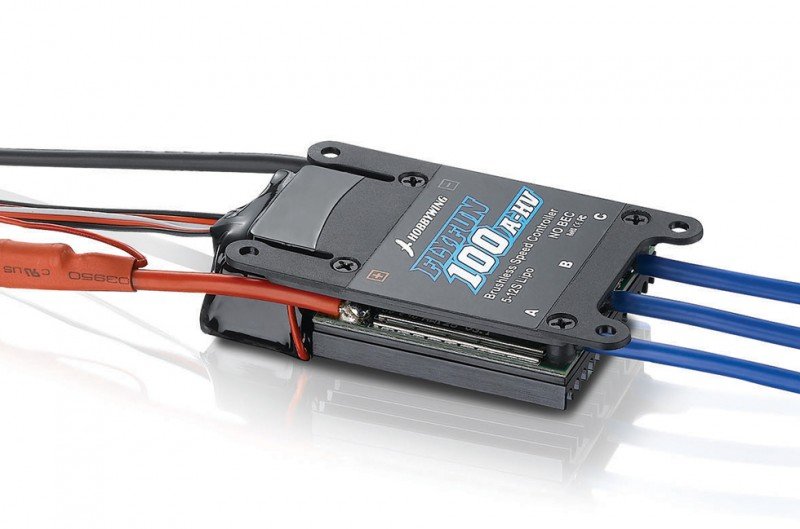

Hobbywing 80020530 - FlyFun 100A HV OPTO V4 ESC Plane and Multirotor ESC  [HW-80020530]

HOBBYWING FlyFun 100A HV OPTO V4 - 80020530
Price:
AUD$234.66
Brand:
Hobbywing
Model:
HW-80020530
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review

Consistent power delivery from Hobbywing 80020530 - FlyFun 100A HV OPTO V4 ESC

Hobbywing engineered the FlyFun 100A HV OPTO V4 ESC for model flyers seeking robust current endurance and steady operation. The use of quality imported components and a low-impedance PCB helps the ESC tolerate continuous loads with reduced heat buildup. It is compatible with a wide range of aircraft types and offers parameter tuning through the LED program card.

Electronic protections to safeguard flights

The ESC features protections against abnormal input voltages, overheating, loss of throttle signal, and undervoltage. These systems work together to protect the controller and powertrain during challenging flight profiles.

Specifications

  • Type: Brushless (BL)
  • Voltage: High Voltage (HV)
  • Continuous/Peak Current: 100A/120A
  • Input: 5-12S LiPo
  • BEC Output: No
  • Output Wires: Blue-12AWG-100mm×3
  • Input Connectors: No
  • Output Connectors: No
  • ESC Programming via Transmitter: Supported
  • LED Program Card: Supported
  • LED Program Box: Not Supported
  • LCD Program Box: Not Supported
  • WiFi Module: Not Supported
  • Program Port: Separate Program Wire
  • Firmware Upgrade: Not Supported
  • Size: 88.0x55.0x18.0mm
  • Weight: 112g

If you need an ESC that balances current capacity with simple programming tools, the FlyFun 100A HV OPTO V4 is a solid option for aircraft projects.

Is this ESC suitable for high-power setups?

Yes, with a 100A continuous rating it is suitable for many high-power motors, but confirm your motor and battery draw remain within the ESCs limits.

What connections are required for programming?

Programming is done via the LED program card or by transmitter programming using the separate program wire port provided on the ESC.

Will this ESC power servos directly?

No, the FlyFun 100A HV OPTO V4 has no BEC output, so servos or receiver power must come from a separate BEC or power distribution solution.
