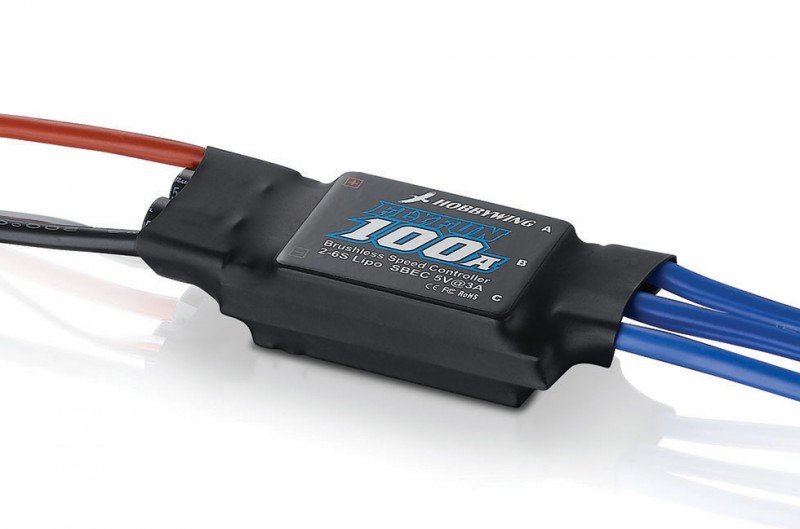

HOBBYWING FlyFun 100A OPTO V4 - 80020660  [HW-80020660]

HOBBYWING FlyFun 100A OPTO V4 - 80020660
Price:
AUD$0.00
Brand:
Hobbywing
Model:
HW-80020660
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Aircraft ESC / BEC category
Write a review

Great Performance

Imported elements and PCB (printed circuit
board) with incredibly low impedance employed by FlyFun ESCs gurantee
great present endurance, good performance and high dependability.



Programmale Parameters

With a rich set of programmable parameters (via a LED system
card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing,
heli, multirotor and etc.)



Several Protections

Multiple security features consist of abnomal input
voltage, ESC thermal, throttle signal loss (or Fail secure), and low voltage
cutoff effectively prolongs the clear answer life related to ESC.




Product Specification


Type

  • Brushed/Brushless : BL
  • High Voltage/Regular : Regular

Specifications

  • Cont./Peak Present : 100A/120A
  • Input : 2-6S LiPo
  • BEC production : No
  • Output Wires : Blue-12AWG-100mm*3
  • Input Connectors : No
  • Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

  • Transmitter : Supported
  • LED Program Card : Supported
  • LED Program Box : maybe not Supported
  • LCD Program Box : perhaps not Supported
  • WiFi Module : maybe not Supported
  • Program Port : Program/Throttle Wire

Firmware

  • Firmware Upgrade : perhaps not Supported

Size & Weight

  • Size : 83.0x31.0x14.0mm
  • Weight : 73g
