HOBBYWING FlyFun 60A V4 - 80020630  [HW-80020630]

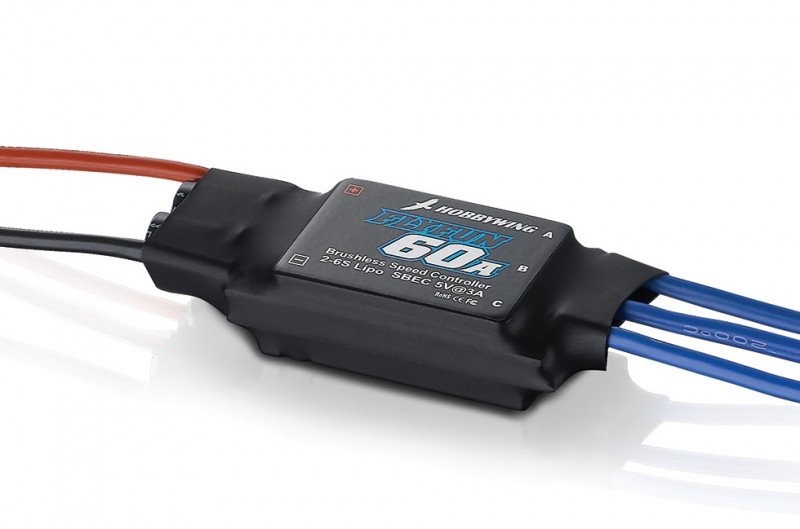

HOBBYWING FlyFun 60A V4 - 80020630
Price:
AUD$0.00
Brand:
Hobbywing
Model:
HW-80020630
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Aircraft ESC / BEC category
Write a review

Great Performance

Imported elements and the PCB (printed circuit
board) with exceptionally low impedance employed by FlyFun ESCs gurantee
great current stamina, good performance and high reliability.



Programmale Parameters

With a rich pair of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is relevant to different aircraft (like fixed-wing,
heli, multirotor and etc.)



A few Protections

Multiple security features contain abnomal input
voltage, ESC thermal, throttle sign loss (or Fail secure), and low voltage
cutoff efficiently prolongs the solution life for the ESC.




Product Specification


Type

  • Brushed/Brushless : BL
  • High Voltage/Regular : Regular

Specifications

  • Cont./Peak Present : 60A/80A
  • Input : 2-6S LiPo
  • BEC Output : Linear mode:5V,3A
  • Output Wires : Blue-14AWG-100mm*3
  • Input Connectors : No
  • Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

  • Transmitter : Supported
  • LED Program Card : Supported
  • LED Program Box : not Supported
  • LCD Program Box : maybe not Supported
  • WiFi Module : perhaps not Supported
  • Program Port : Program/Throttle Wire

Firmware

  • Firmware Upgrade : maybe not Supported

Size & Weight

  • Size : 83.0x31.0x16.0mm
  • Weight : 63g
