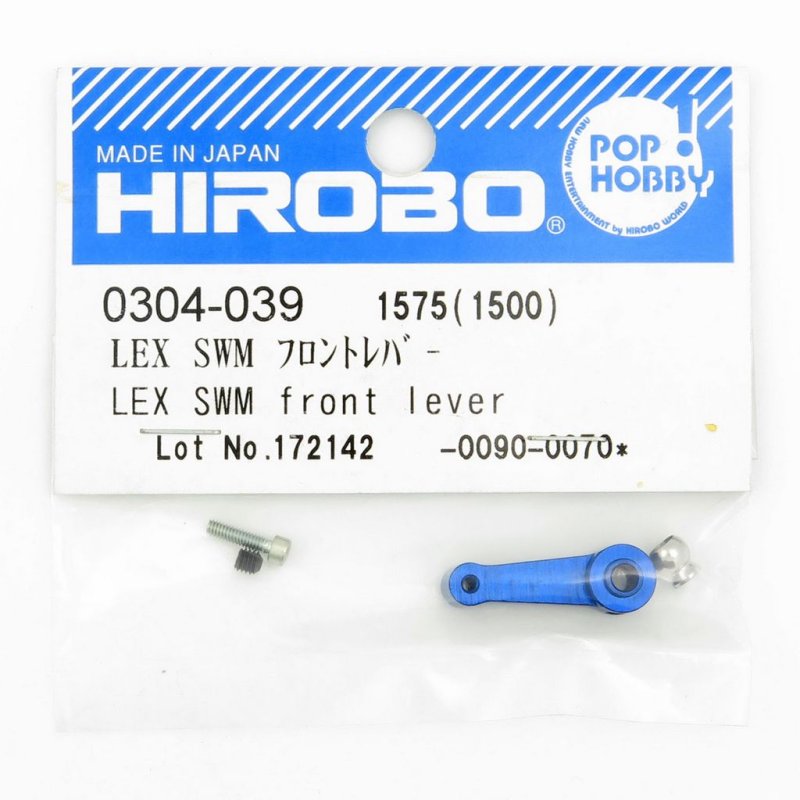

Front Cyclic Lever for Lepton LEX SWM - HI0304039 by Hirobo  [HI0304039]

Lepton LEX SWM front lever explanation

This front lever is produced for the Lepton LEX SWM series and is catalogued as Hirobo HI0304039. It serves as a key mechanical element of the cyclic linkage, converting swashplate movement into rotor head arm motion.

Fit and function: designed to support precise linkage travel, the lever is a tuning component when adjusting cyclic balance. Prior to installation, inspect mating surfaces and ball-end sockets for wear to ensure predictable control inputs.

Installation notes: secure the model, remove rotor head linkages where needed, transfer linkages carefully, set the swashplate to neutral and confirm symmetric travel after installation, then check for full, unbound control throw. This guidance covers model-scale maintenance and setup only.
