Futaba FUAS3198 Internal Replacement Gears AS3198 EBS3092  [FUAS3198]

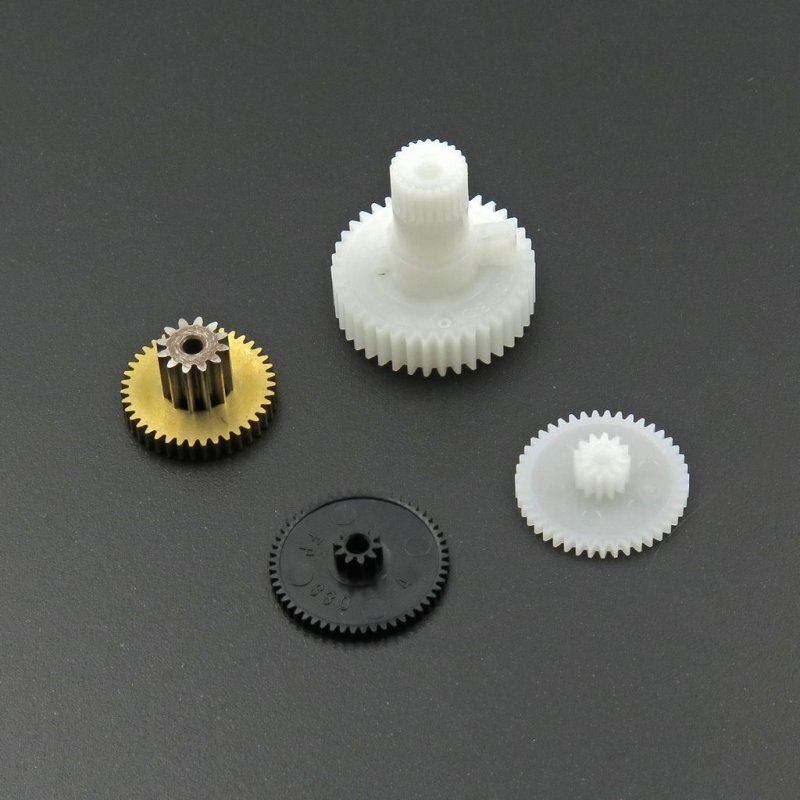

FUTABA S9102 SERVO GEAR SET AS3198 EBS3092 (W/O PACKING)
Price:
AUD$6.46
Brand:
Futaba
Model:
FUAS3198
Condition:
Brand New
Write a review

Service Guide for FUAS3198 Gear Set

This Futaba FUAS3198 gear set corresponds to the S9102 servo family and is listed with part references AS3198 and EBS3092. It is supplied without retail packing and is intended for use as replacement internal gears rather than a complete servo unit.

The gear set addresses common service needs: renewing worn gear trains, fixing stripped teeth after impact, or preparing a servo for continued service following teardown. Confirm the servo model before attempting component-level repairs.

Fitting notes: disassemble the servo per the manufacturer's instructions, keep track of screws and bearings, and inspect gear mesh and endplay during reassembly. Use a light gear lubricant and exercise the servo through its range before returning it to the model. If you are uncertain, seek assistance from a trained hobby technician or consult Futaba S9102 service materials.

What basic tools do I need to replace these gears?

Typical small tools suffice: a precision screwdriver set, tweezers for bearings, and a small pick. Work on a clean surface to avoid losing tiny parts.

How should I check gear mesh and endplay?

After reassembly, ensure gears engage smoothly without binding and that the output spline has minimal axial play. Adjust spacing if required before final fastening.

Is professional servicing recommended for complex failures?

For extensive damage or uncertain repairs, consult a trained hobby technician or Futaba service documentation for the S9102 series. Complex failures may need specialist tools.
