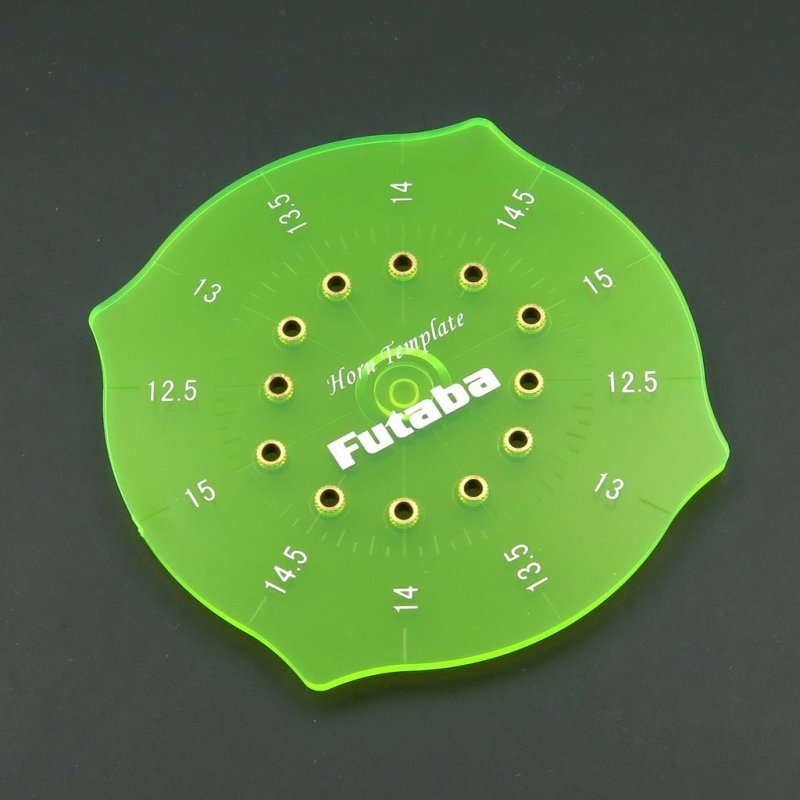

Futaba FUHT1 12.5-15mm Servo Horn Drilling Gauge  [FUHT1]

12.5-15mm Servo Horn Drill Guide

The Futaba FUHT1 drill gauge template provides a compact solution for lining up and drilling mounting holes in servo horns sized from 12.5-15mm. It is intended as a reliable positioning tool so hole centers match across replacement or modified horns.

To use, seat the template on the horn, select the guide aperture that matches your required location, and start the hole with a pin vise or a low-speed hand drill through the guide. The template is suitable for the common plastic and composite horns found on hobby servos.

Repeatable hole alignment helps maintain the horn balance and steering characteristics you tune for. Employ the template when swapping horns, trimming aftermarket pieces, or duplicating hole patterns to retain consistent control geometry.
