Futaba FUMC970A Aircraft ESC 70AMP for 4-12S Li-Po  [FUMC970A]

FUTABA MC970A 70AMP 4-12S LI-PO BRUSHLESS MOTOR CONTROLLER ESC WITHOUT BEC
Price:
AUD$63.59
Brand:
Futaba
Model:
FUMC970A
Condition:
Brand New
Write a review

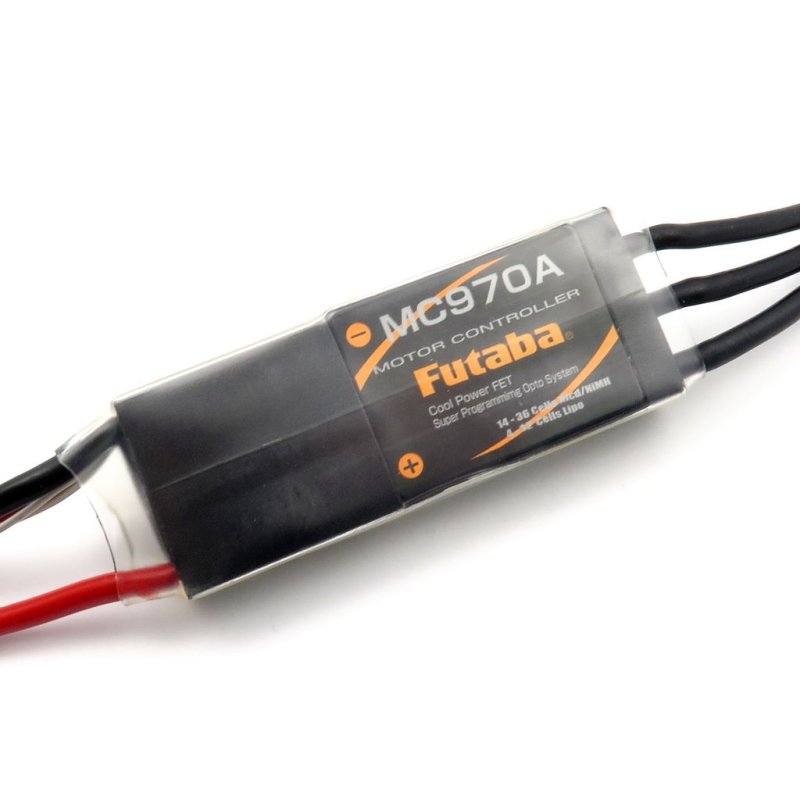

alt="FUTABA MC970A 70AMP 4-12S LI-PO BRUSHLESS MOTOR CONTROLLER ESC WITHOUT BEC" title="FUTABA MC970A 70AMP 4-12S LI-PO BRUSHLESS MOTOR CONTROLLER ESC WITHOUT BEC"

Brushless Aircraft ESC Summary

The Futaba FUMC970A is an electronic speed controller tailored to electric RC aircraft that use brushless motors and multi-cell Li-Po packs. It carries a 70AMP continuous rating, accepts 4–12S Li-Po input, and does not include a built-in BEC.

Key installation points include correct connector selection, robust power routing, and maintaining cooling airflow. Since the unit lacks an internal BEC, install an external regulator or UBEC to feed servos and radio. Secure mounting with vibration isolation and appropriately sized wiring are important when operating near the ESCs rated current.

When configuring the ESC, adhere to Futaba-recommended programming steps for the FUMC970A to adjust timing, brake, and governor-type settings. Ensure the chosen motor and prop combination keeps both peak and continuous currents within the 70AMP specification, and perform bench runs to check thermal response ahead of flight.

Specifications

  • Item: Brushless motor electronic speed controller (ESC)
  • Material: Electronic components and PCB assembly
  • Model Number: FUMC970A
  • Compatibility: Intended for brushless motors; supports 4-12S Li-Po batteries for aircraft applications
  • Current Rating: 70AMP (as stated in product name)
  • BEC: No built-in BEC (without BEC)

Builders fitting high-current propulsion systems who prefer an ESC without integrated receiver power will find the FUMC970A defines safe operating limits and should be paired with an external power module and compatible brushless motor.

How do I match a prop and motor to the ESC rating?

Select a motor and propeller combination whose continuous current draw remains below 70AMP in typical flight conditions; consult motor test data and verify with a wattmeter under representative loads.

What tuning changes can affect current draw the most?

Higher motor timing, larger propellers, and aggressive throttle mapping increase current draw. Make incremental adjustments and measure current to avoid exceeding the ESC rating.

How should I bench test the ESC and motor combination?

Perform static tests with a properly loaded prop or dyno, gradually increase throttle while monitoring current and temperature, and confirm the system stays within safe limits for extended runs.

Are there recommended connector types for reliable power delivery?

Use connectors rated for 70AMP continuous service and solder high-current joints carefully; avoid undersized connectors that can overheat under load.

Can programming settings reduce in-flight heating?

Lowering timing and moderating throttle endpoints can reduce average current and heat, but always validate such changes on the ground to confirm acceptable performance.

Is firmware or tool support required to adjust advanced features?

Use the configuration methods recommended by Futaba for the FUMC970A when enabling advanced modes; consult official documentation to ensure correct and safe parameter changes.
