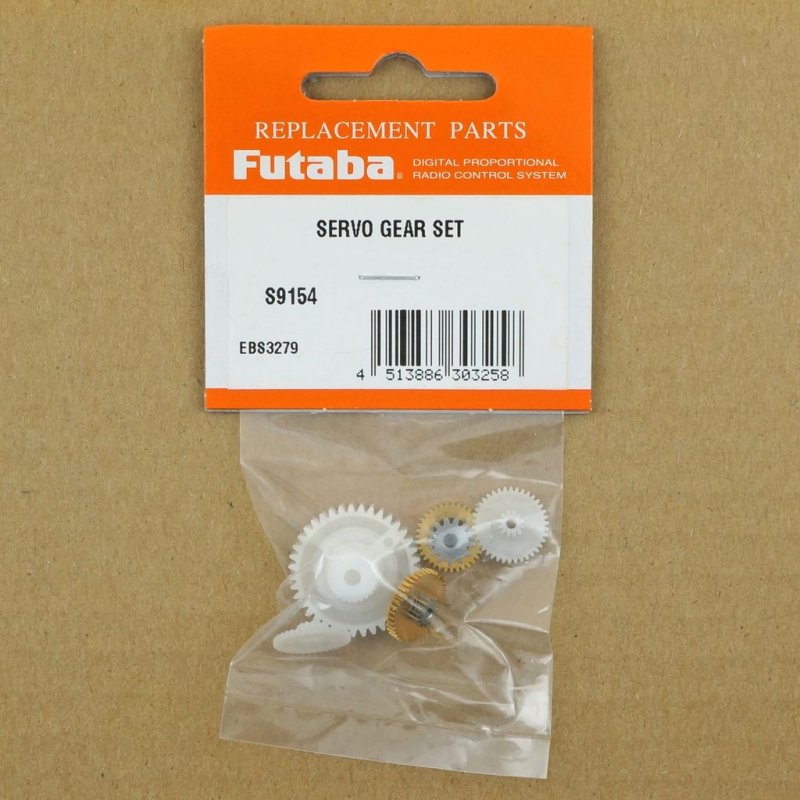

Futaba S9154 FUAS4118 Servo Gear Group Replacement  [FUAS4118]

S9154 Gear Group - Service Notes

This RC-scale servo accessory is offered as the internal gear group replacement for Futaba S9154 servos, referenced by model number FUAS4118. It provides the internal drivetrain components needed to repair gear damage without swapping the complete servo.

Use the kit to address wear: swap damaged gears, inspect mesh and backlash, and bring the servo back to its designed mechanical behaviour. Carry out the procedure on a prepared workspace and track bearings and washers removed so the original spacing is restored when reassembling.

Installation overview: remove the lid and motor screws, record the gear order, lift out the gear train, fit the FUAS4118 gears and reassemble in reverse sequence. After assembly confirm smooth rotation, correct centring and secure horn attachment prior to refitting to any model. Adjust gear mesh and perform bench validation to confirm expected control response.

For tuning, replacing internal gears will often reduce play from worn teeth and re-establish repeatability for steering and control surfaces. Re-verify endpoints and centring under operating load after installation to ensure consistent performance in RC models.
