TRAXXAS SLASH MUDBOSS MODIFIED DIRT OVAL RACER Gearbox Gear Belt Drive set With Motor Gear - GPM TSM1660TS [TSM1660TS]

Price:

AUD$16.76

Brand:

GPM

Model:

TSM1660TS

Condition:

Brand New

Color Available:

Quantity:

Write a review

alt="TRAXXAS SLASH MUDBOSS MODIFIED DIRT OVAL RACER Gearbox Gear Belt Drive set With Motor Gear - GPM TSM1660TS" title="TRAXXAS SLASH MUDBOSS MODIFIED DIRT OVAL RACER Gearbox Gear Belt Drive set With Motor Gear - GPM TSM1660TS"

Description

GPMRacing forTRAXXAS RUSTLER VXL TRAXXAS SLASH MUDBOSS MODIFIED DIRT OVAL RACER Gearbox Gear Belt Drive set With Motor TSM1660TS

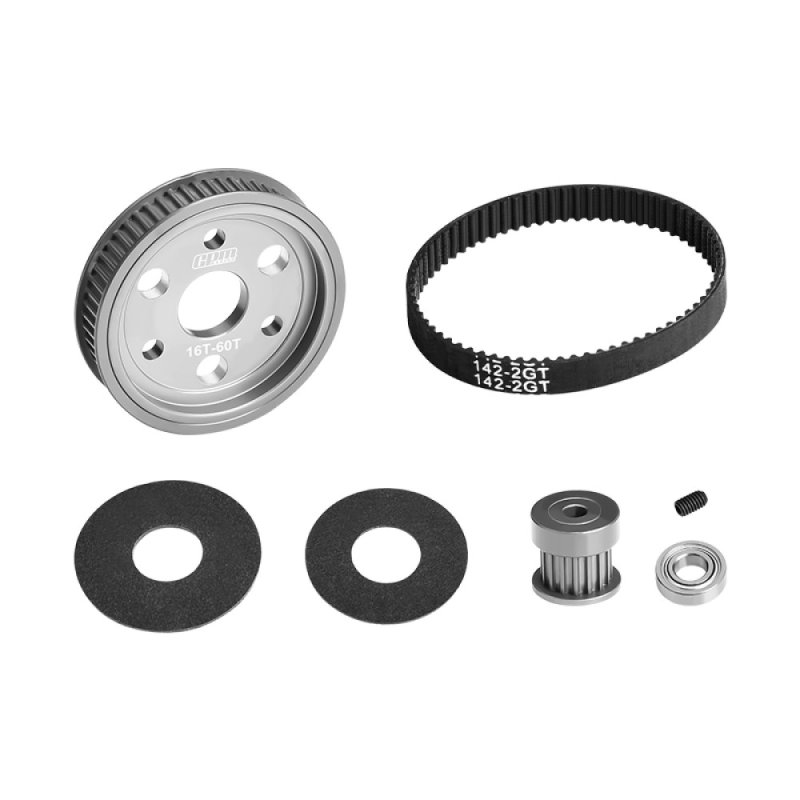

Packaging Includes:

Spur Gear 60T-1PCS

Pinion Gear 16T-1PCS

Belt 142mm-1PCS

Friction disc 12x32x0.8-1PCS

Friction disc 12x28x0.8-1PCS

Bearing 5x11x3-1PCS

Set Screws 3x5-1PCS

Major advantages of upgrading to this part/product:

Using high-quality material combination aluminum alloy 6061-T6 + rubber to ensure structural strength, shockproof and high pressure resistance, effective shock and noise reduction, making the equipment run quieter; at the same time, reducing friction loss between gears and extending the overall service life.

This product uses belt drive, which can effectively reduce the noise of the gearbox and reduce the shaft effect compared to traditional metal drive.

It should be noted that the power of belt drive is smaller than that of gear drive. If you have high power requirements for your device, please consider purchasing it carefully.

To ensure product compatibility, please be sure to measure the size of your motor shaft before purchasing. This product is suitable for motor shafts with an inner diameter of 3.175, of which the large gear is a general specification.

Installation steps:

First put the metal plate of the original gearbox into the designated position.

Select the friction plate of the corresponding size and stick it accurately into the groove of the corresponding pulley.

Place the bearing in the middle of the device.

Install the original metal plate, limit anti-skid spring and nut in sequence, and ensure that they are firmly installed.

First install the two gears relatively close to each other so that the belt can be put on them, and then adjust the distance between the gears to keep the belt in a tightened state.

Suitable Model：

TRAXXAS 1/10 SLASH MUDBOSS MODIFIED DIRT OVAL RACER-104354-74

TRAXXAS CRANIAC

TRAXXAS 1/10 2WD BANDIT XL-5 OFF ROAD RC BUGGY-24054-1

TRAXXAS 1/10 2WD BANDIT XL-5 BUGGY-24054-1

TRAXXAS 1/10 2WD BANDIT XL-5 BUGGY-24054-61

TRAXXAS 1/10 2WD BANDIT XL-5 BUGGY-24054-4

TRAXXAS 1/10 2WD BANDIT-24254-8

TRAXXAS RUSTLER VXL

TRAXXAS 1/10 RUSTLER VXL-37076-3

This item is suitable for TRAXXAS 1/10 SLASH MODIFIED-104354-74, BANDIT XL 5 RC Buggy, TRAXXAS CRANIAC, TRAXXAS Rustler VXL and TRAXXAS Rustler VXL
