TRAXXAS TRX4 Pendulum Wheel Weight Set with 9mm Hex Adapter TRX4023X by GPM  [TRX4023X]

TRAXXAS TRX4 TRAIL CRAWLER Brass Pendulum Wheel Knuckle Axle Weight + 9mm Hex Adapter -16pc set - GPM TRX4023X
Price:
AUD$88.03
Brand:
GPM
Model:
TRX4023X
GTIN:
4894538286755
Condition:
Brand New
Write a review
alt="TRAXXAS TRX4 TRAIL CRAWLER Brass Pendulum Wheel Knuckle Axle Weight + 9mm Hex Adapter -16pc set - GPM TRX4023X" title="TRAXXAS TRX4 TRAIL CRAWLER Brass Pendulum Wheel Knuckle Axle Weight + 9mm Hex Adapter -16pc set - GPM TRX4023X"
alt="TRAXXAS TRX4 TRAIL CRAWLER Brass Pendulum Wheel Knuckle Axle Weight + 9mm Hex Adapter -16pc set - GPM TRX4023X" title="TRAXXAS TRX4 TRAIL CRAWLER Brass Pendulum Wheel Knuckle Axle Weight + 9mm Hex Adapter -16pc set - GPM TRX4023X"
alt="TRAXXAS TRX4 TRAIL CRAWLER Brass Pendulum Wheel Knuckle Axle Weight + 9mm Hex Adapter -16pc set - GPM TRX4023X" title="TRAXXAS TRX4 TRAIL CRAWLER Brass Pendulum Wheel Knuckle Axle Weight + 9mm Hex Adapter -16pc set - GPM TRX4023X"

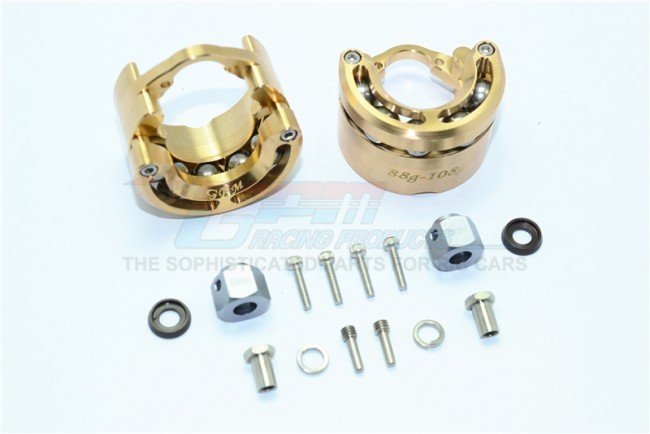

Knuckle pendulum weight upgrade for TRX4

This kit provides an RC-scale pendulum wheel knuckle axle weight plus a 9mm hex adapter built for the TRAXXAS TRX4. Its role is to add downward mass at each wheel so tyres keep contact during slow crawling and when negotiating obstacles or soft ground.

The pendulum uses stainless steel rolling beads to focus extra mass lower on the wheel assembly, creating consistent downward loading. The result is more weight at the wheel edge to help the tyre bite when the chassis tilts or a wheel plunges into a depression.

Materials include a brass pendulum housing and stainless steel beads and screws. The beads are removable, allowing stepwise adjustment of wheel-end mass. Install on the outer cover of front and rear knuckles so added load is applied without changing steering or suspension geometry.

Specifications

  • Item Pendulum wheel knuckle axle weight with 9mm hex adapter, 16 pcs set
  • Material Brass pendulum housing, stainless steel rolling beads and screws
  • Model Number TRX4023X
  • Compatibility TRAXXAS TRX4 TRAIL CRAWLER
  • Weight per piece 108g (with rolling beads installed)
  • Set contents 9mm Hex Adapter - 2 pcs, Stainless Steel Cap Head Screw 2.5x12 - 4 pcs, Stainless Steel Screw Shaft M4x2.5x11.8 - 2 pcs, 5mm Shims - 2 pcs, 5mm Metal Washer - 2 pcs, 10mm Hex Socket Screw - 2 pcs
  • Adjustability 5 removable stainless steel beads, each ~4g, for tuning pendulum weight
  • Adapter note 9mm hex adapter is 4mm wider than original TRX4 hex

Use the brass pendulum assembly to tune wheel-end inertia for improved slow-speed crawling; vary bead count to match terrain and tyre setup.

This item is compatible with

  • TRAXXAS TRX4 Defender Trail Crawler

Does this kit fit TRX4 axles directly?

Yes, the pendulum housings mount to the outer case of the front and rear wheel knuckles and the 9mm hex adapter is supplied for wheel fitment as noted in Specifications.

How heavy is each unit with beads installed?

Each pendulum assembly weighs about 108g when the stainless beads are fitted, offering a noticeable increase in wheel-end mass for crawling stages.

Can I remove beads for lighter handling?

Yes, beads are removable. Reducing bead count lowers wheel-end mass and can improve steering responsiveness at the cost of some low-speed traction.

Are replacement beads available?

The kit includes removable stainless beads; source replacements or alternatives from stainless hardware suppliers if you need extra or spare beads for further tuning.
