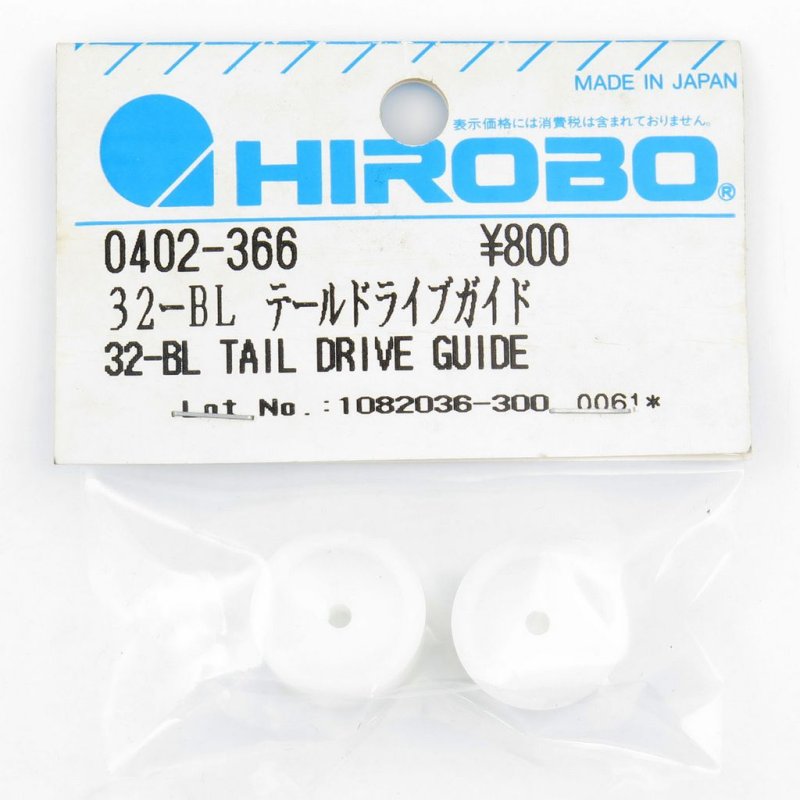

HIROBO HI0402366 32-BL Tail Drive Routing Guide  [HI0402366]

Tail drive unit details

This HIROBO HI0402366 item is an RC tail drive guide engineered to control routing and alignment of the tail drive inside helicopter shuttle assemblies. It provides a guided bearing point to keep the tail shaft or belt aligned through the fuselage, cutting down on sideways motion and supporting reliable tail rotor performance in flight and while tuning on the bench.

When installing, slot the guide into the existing drive line without forcing the shaft or belt. Verify axial alignment and unimpeded movement after installation, make sure there is no binding at any collective or yaw range, and check clearances with the tail boom and nearby linkages. Use the frame's original mounting points and secure the guide with the correct kit fasteners.

In terms of tuning and maintenance, this guide helps stabilise tail drive tension and routing, aiding predictable tail response as you adjust pitch curves, yaw gains or gyro setup. Periodic inspections for wear and correct seating will help prevent drive wobble and premature wear of other components.
