HOBBYWING QuicRun 2435 G2 - 30404001  [HW-30404001]

HOBBYWING QuicRun 2435 G2 - 30404001
Price:
AUD$47.21
Brand:
Hobbywing
Model:
HW-30404001
Condition:
Brand New
Write a review
alt="HOBBYWING QuicRun 2435 G2 - 30404001" title="HOBBYWING QuicRun 2435 G2 - 30404001"
alt="HOBBYWING QuicRun 2435 G2 - 30404001" title="HOBBYWING QuicRun 2435 G2 - 30404001"

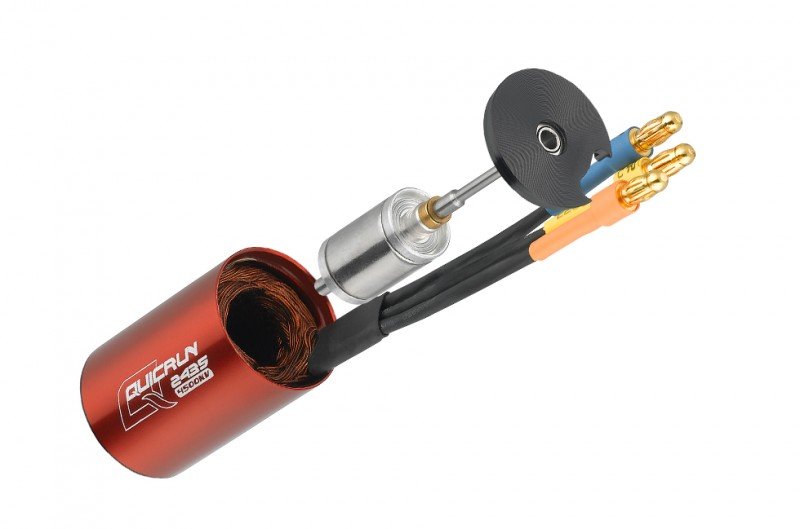

Great Construction

The utilization of a heat-resistant magnet attached metal case and dual insulated windings,
high accuracy bearings, and rotor with a powerful framework guarantees outstanding
performance and super durability.



Cost-effective

The QUICRUN-2435 is an inexpensive motor but appropriate
to 1/16th & 1/18th scale automobiles.



High Efficiency

The manufacturing performance of this engine has an effectiveness all the way to 80percent.
In identical load condition, QUICRUN 2435 contains the greater effectiveness but lower temperature
than many other 2435 engines.



Dustproof Design

The dustproof design implemented at load end of this motor makes this
QUICRUN 2435 engine relevant for monster trucks, buggies.



Plug and Play

Pre-soldered with high-quality silver connectors on engine leads,
the QUICRUN 2435 motor is a plug and play.





Item Specification


Type

  • Scale : 1/16th、1/18th
  • Brushed/Brushless : BL
  • Sensored/Sensorless : SL
  • Pole Count : 2

Relevant Parameters

  • KV Rating : 4500
  • LiPo Cells : 2-3S
  • No-load Current(A) : 1.5
  • Max. Energy Output(W) : 150
  • Current during the Point of Max. Energy Output(A) : 33

Size & Weight

  • O.D.(mm) : 24.0
  • Length (mm) : 36.5
  • Shaft Diameter (mm) : 2.3
  • Weight (g) : 73
