HOBBYWING QuicRun 3650SD 25.5T G2 Brushless Motor 30404308 - Club Race Choice  [HW-30404308]

HOBBYWING QuicRun-3650SD-25.5T G2 - 30404308
Price:
AUD$86.98
Brand:
Hobbywing
Model:
HW-30404308
Condition:
Brand New
Write a review
alt="HOBBYWING QuicRun-3650SD-25.5T G2 - 30404308" title="HOBBYWING QuicRun-3650SD-25.5T G2 - 30404308"
alt="HOBBYWING QuicRun-3650SD-25.5T G2 - 30404308" title="HOBBYWING QuicRun-3650SD-25.5T G2 - 30404308"
alt="HOBBYWING QuicRun-3650SD-25.5T G2 - 30404308" title="HOBBYWING QuicRun-3650SD-25.5T G2 - 30404308"
alt="HOBBYWING QuicRun-3650SD-25.5T G2 - 30404308" title="HOBBYWING QuicRun-3650SD-25.5T G2 - 30404308"

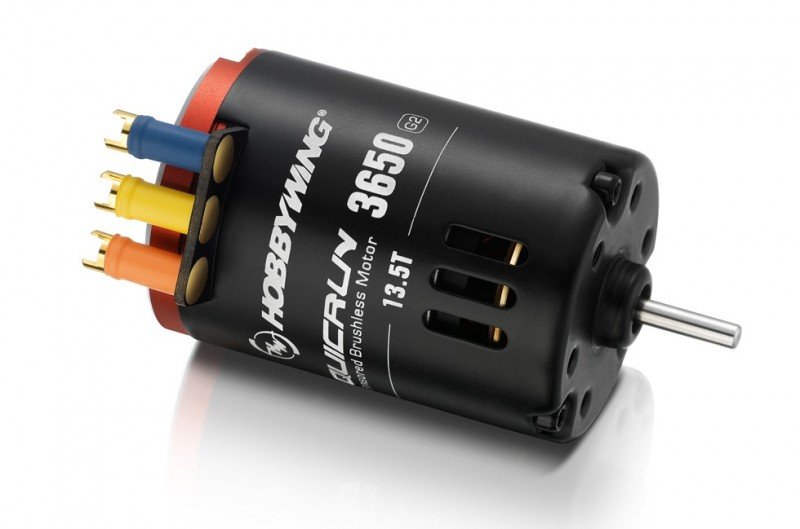

Overview of the HOBBYWING 30404308 Motor

The HOBBYWING 30404308 delivers dependable power delivery and a consistent driving experience for a wide range of small-scale RC vehicles. Its build suits both practice sessions and competitive club racing.

What the Sensored Design Gives You

Thanks to sensored commutation, the motor offers clean starts and less hesitation at low throttle, making close-quarters driving and precision throttle control more manageable.

Suitable Models and Powerpacks

With a KV of 1520 and compatibility with 2-3S LiPo cells, this unit works well in 1/10 touring cars, 1/12 F1 cars, and compact off-road setups. The size and weight align with standard mounting arrangements.

Competition and Reliability

Its fixed timing and two-pole layout are designed for steady, efficient operation in stock and sport class formats, favouring consistent lap-to-lap performance over aggressive tuning.

Specifications

  • Scale: 1/10 and 1/12
  • Type: Brushed/Brushless, Sensored
  • KV Rating: 1520
  • Compatible LiPo Cells: 2-3S
  • No-load Current: 1.1A
  • Outer Diameter: 36mm
  • Length: 52.8mm
  • Shaft Diameter: 3.17mm
  • Weight: 186g
  • Timing: Fixed

If you want a straightforward sensored brushless motor that performs reliably across multiple 1/10 and 1/12 applications, the HOBBYWING 30404308 is a solid option.

Use an ESC that supports sensored motors and the appropriate motor connector type. Sensor wiring must be connected for full sensored operation.
Yes. The motor's efficient design and fixed timing make it well suited for stock and regulated classes where consistency is important.
Check running temperature after sessions and inspect the shaft and bearings for play. Keep gearing appropriate and use cooling where required for long runs.
This is a brushless sensored unit; it cannot replace brushed motors without switching to a brushless-capable ESC and matching wiring and mounts.
