Replacement Case Set for Futaba S5801 - FUAS3096  [FUAS3096]

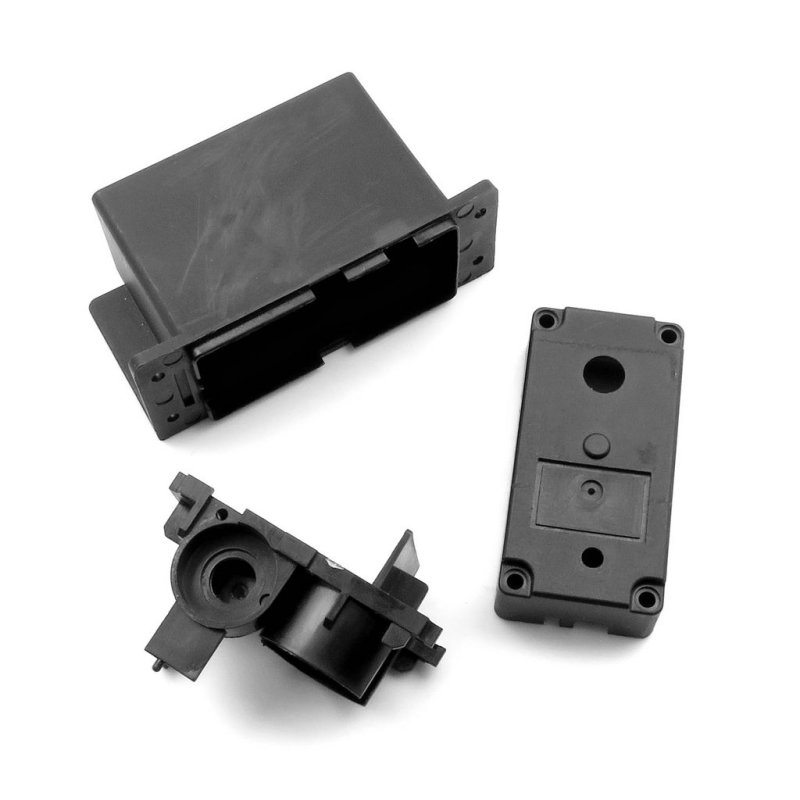

FUTABA S5801 SERVO CASE SET AS3096 EBS3120 (W/O PACKING)
Price:
AUD$5.33
Brand:
Futaba
Model:
FUAS3096
Condition:
Brand New
Write a review

Fitment and Installation Notes

This is an RC replacement case set made for Futaba S5801 servos, supplied without retail packing. The kit contains the external housing components that protect the internal electronics and secure the output shaft and mounting ears.

Perfect for replacing a damaged shell or moving internal electronics and gears into a new enclosure during bench work. The parts are engineered to accept the unmodified Futaba S5801 internal assembly.

To install, remove the original case screws, transfer the PCB, gear train and output horn into the new shell, and refit using the original fasteners. Double check output spline engagement and horn alignment before final tightening to keep correct neutral centring for setup work.

Which tools are recommended for fitting the FUAS3096 shell?

Basic hand tools are sufficient: a small Phillips or Pozidriv driver for the case screws, and tweezers for handling the PCB and small gears during transfer.

Can I reuse the original case screws and horn?

Yes, reuse the original screws and output horn when transferring the Futaba S5801 internals into the FUAS3096 shell.

How do I preserve neutral centring after reassembly?

Before final tightening, set the servo to its neutral position and align the output horn and spline so the horn sits centered; then secure the screws to lock the position.
