Installation and tuning notes for pilots

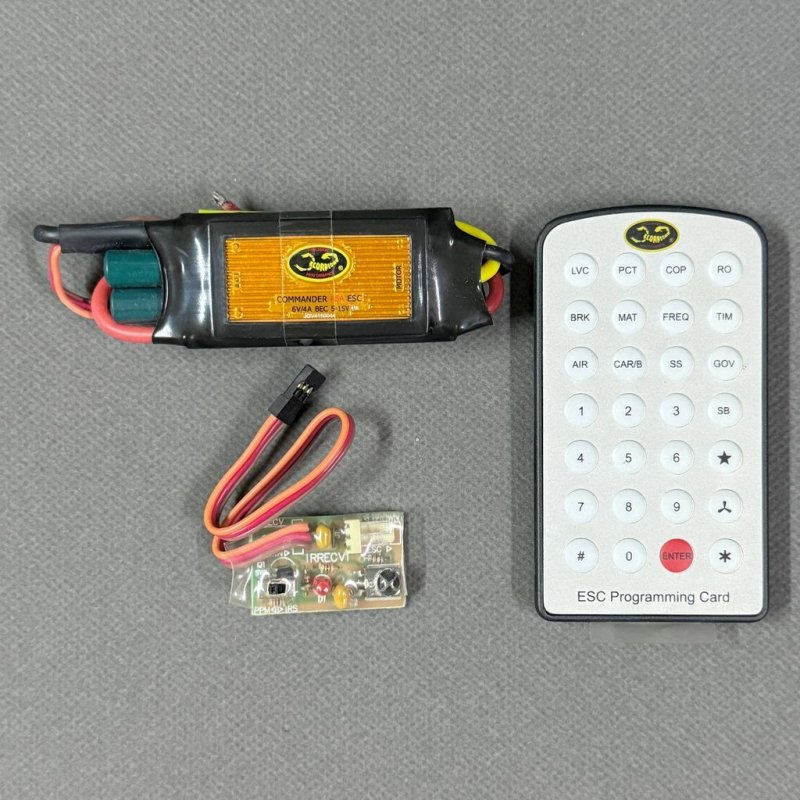

The Scorpion SPCR15V45AESC serves as an ESC for brushless motor systems running on 2-4S battery packs and includes a 6V/4A onboard BEC for servos and the receiver in both fixed-wing and rotary models. The section below addresses platform compatibility, mounting recommendations, wiring essentials, and how the ESC interacts with throttle and governor tuning without asserting details beyond the stated model.
Compatibility and placement: choose a mounting location that provides airflow or allows heat to dissipate, and keep the motor and battery leads short to reduce resistance losses. Route the BEC leads away from the main power cables to reduce noise pickup, and avoid running long signal cables parallel to high-current wiring. For helicopters, confirm the BEC can handle peak servo demands during hard manoeuvres and check for voltage drops under representative loads.
Wiring and connectors: fit battery connectors and motor wires sized for anticipated current and verify polarity prior to powering up. If a separate BEC or power distribution system is used, disable the onboard BEC to avoid dual-supply issues. Program throttle endpoints, fail-safes and cutoffs in line with guidance from your transmitter and motor supplier.
Tuning role: this ESC provides main power regulation plus a regulated 6V/4A feed for onboard electronics. It helps define throttle response and braking feel, and may include thermal and current protection functions depending on firmware. When refining throttle or governor settings for an airframe, adjust curves at the radio or flight controller and run bench-load checks to confirm ESC behaviour before flying.
Specifications
- Item: 15V 45A 2-4S Brushless ESC with 6V/4A BEC
- Material: Not specified
- Model Number: SPCR15V45AESC
- Compatibility: 2-4S LiPo battery setups, intended for RC planes and helis
For constructors and flyers seeking a compact ESC with an integrated servo supply for 2-4S brushless aircraft, the SPCR15V45AESC delivers the necessary power control and BEC output; confirm mounting, cooling and BEC limits for your specific airframe ahead of flight testing.
