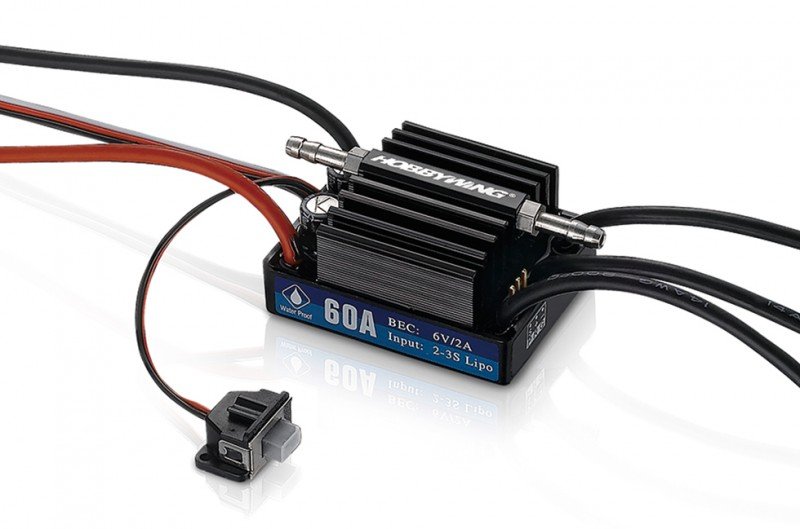

HOBBYWING Seaking 60A V3.1 30302200 Marine ESC - High Duty Watercooled Controller  [HW-30302200]

HOBBYWING Seaking 60A V3.1 - 30302200
Price:
AUD$127.16
Brand:
Hobbywing
Model:
HW-30302200
Condition:
Brand New
Write a review

HOBBYWING Seaking 60A V3.1 Overview

Model boat pilots looking for a balance of power and protection will find the HOBBYWING Seaking 60A V3.1 suits many setups. This ESC pairs solid electronics with a tough, water-ready build for reliable on-water performance.

Balanced Power Delivery and Protection

The Seaking 60A V3.1 uses durable components and tuned firmware to provide steady output while protecting the system. Built-in features include low-voltage cutoff, thermal protection, and safety against signal loss to keep runs smooth.

Patented Heat Transfer and Water Cooling

Effective heat management is achieved with a heat-conductive copper bar cover that transfers thermal load into the CNC machined billet aluminium water-cooled housing, helping the ESC maintain performance under stress.

Waterproof Build for Marine Use

The product's fully waterproof construction eliminates the need for aftermarket sealing, letting you focus on setup and tuning rather than extra protection.

Switch Mode BEC and Acceleration Algorithm

The onboard switch mode BEC supplies up to 6A at 6V to run powerful servos, while the ESC algorithm improves acceleration and keeps sailing predictable during varied throttle inputs.

Specifications

  • Continuous/Peak Current: 60A/360A
  • BEC Output: 6V/3A, switch mode
  • Waterproof: Yes
  • Size: 60.5x38.5x25.6mm
  • Weight: 95g
  • Compatible Boat Length: Less than 70cm

For everyday running or competitive trimming, the HOBBYWING Seaking 60A V3.1's cooling, waterproofing, and safety systems make it a dependable choice for many hull types.

It is compatible with standard brushless motors, but you will need to fit the correct motor and battery connectors and ensure the motor's current draw suits the ESC rating for your intended use.
Typical setups route water through the aluminium housing. Use appropriate tubing and keep the passages clear to maintain efficient cooling.
The switch-mode BEC can supply up to 6A at 6V, which supports most high-voltage servos. Check your servo stall current and duty cycle to ensure compatibility.
After use, flush the hull and external fittings with fresh water, inspect seals and connectors, and dry the unit thoroughly before storage to reduce corrosion risk.
This ESC is specified for boats less than 70cm; larger hulls or higher power setups may exceed the continuous current rating, so verify expected current draws before fitting.
