Sensor-Compatible Brushless Motor + BL-EP6 ESC - Yokomo BL-EP63175  [BL-EP63175]

Yokomo BL-EP63175 jp
Price:
AUD$231.49
Brand:
Yokomo
Model:
BL-EP63175
GTIN:
639342205462
Condition:
Brand New
Write a review
alt="Yokomo BL-EP63175 jp" title="Yokomo BL-EP63175 jp"
alt="Yokomo BL-EP63175 jp" title="Yokomo BL-EP63175 jp"

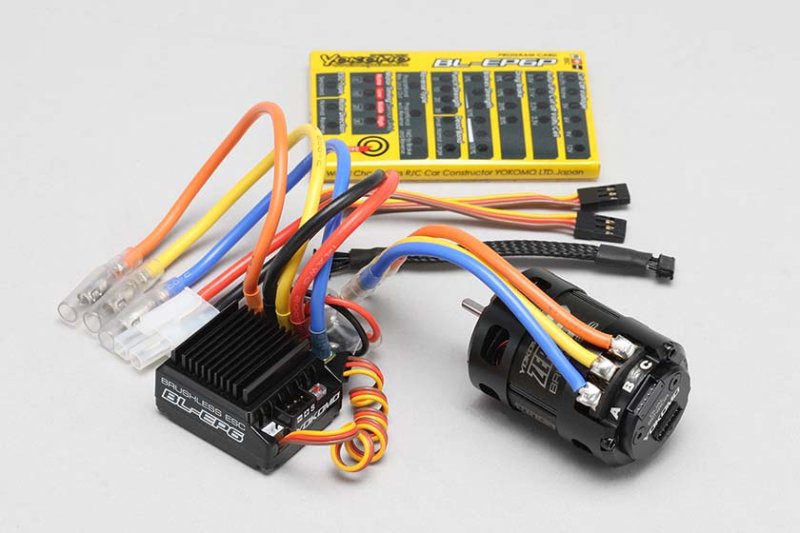

Overview of the BL-EP63175 motor and ESC kit

The kit brings together a ZERO3-style brushless motor and the BL-EP6 speed controller as a single matched package for RC-scale applications. The motor provides a smooth power curve with advance angle adjustment available, and the BL-EP6 keeps things simple with core tuning accessed through the handheld programmer.

The motor includes two sensor cable connectors and a 100mm sensor cable is supplied for installations that require sensor wiring. The BL-EP6 ESC is compact, includes an on-board power switch, and supports throttle and brake parameter changes via the programmer and its lead.

This bundle is offered as a universal option for 1/10-scale chassis that need a sensor-capable motor and a space-saving ESC, focusing on ease of installation and straightforward programmer-guided tuning.

Packing includes

  • Motor and ESC combo - 1 pcs
  • ZERO3 brushless motor (sensor-ready) - 1 pcs
  • BL-EP6 speed controller - 1 pcs
  • Dedicated programmer - 1 pcs
  • Programmer connection cord - 1 pcs
  • Sensor cable (100mm) - 1 pcs

Specifications

  • Item: Motor and ESC combo set
  • Material: Not specified
  • Model Number: BL-EP63175
  • Compatibility: Universal chassis

Compatibility

Supported chassis: Universal 1/10 RC platforms that accept sensor-capable brushless motors and compact ESC installations.

Suitable for modellers who want a compact, sensor-ready motor paired with an easy-to-use ESC and programmer, this kit gives the basic tools to install, set advance angle, and tweak throttle/brake behavior on 1/10 machines.
Remark :
Due to limited stock availability, please notice that some Yokomo items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

How do I use the programmer to change throttle response?

Connect the programmer to the BL-EP6 with the provided cord and follow the programmer menu to adjust throttle curves and sensitivity. The interface is designed for straightforward adjustments rather than deep race tuning.

Can I run the motor without sensors connected?

Depending on the ESC mode, sensorless operation may be possible, but the motor is supplied with sensor connectors and a cable to enable sensored setups where precise low-speed control is desired.

What does the included sensor cable allow me to do?

The 100mm sensor cable lets you connect the motor sensors to the BL-EP6 so the ESC can receive rotor position feedback, improving start-up torque and low-speed drivability in sensored mode.

Is any extra hardware needed to mount the motor and ESC?

Most 1/10 chassis use standard motor mounting patterns and the BL-EP6 is designed for compact mounting. Verify your chassis space and mounting holes; apart from basic screws and wiring, no special parts are normally required.
