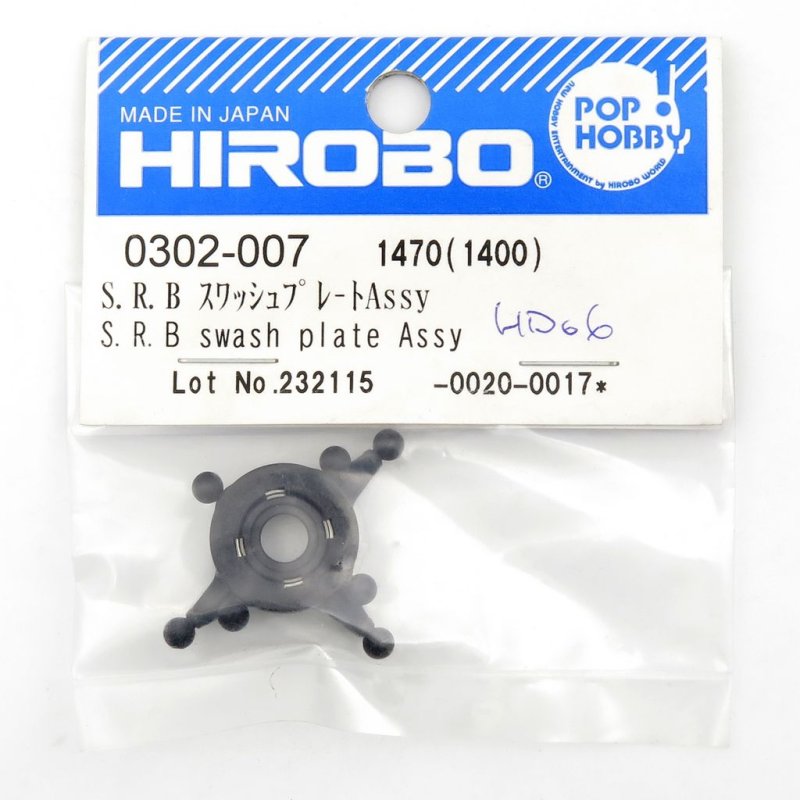

SRB Helicopter Swash Plate Assembly HI0302007 by Hirobo  [HI0302007]

Fit, role and service checks for SRB swash plates

The Hirobo HI0302007 swash plate assembly is manufactured for SRB series RC helicopters to manage cyclic and collective inputs. Below is a concise guide to its role in the rotor head, fitment checkpoints when replacing the unit, and how it interacts with servos and linkage geometry during setup.

This assembly converts servo commands into blade pitch changes across collective and cyclic channels. When installing, ensure the swash is aligned with the main rotor hub, that it moves freely through full travel without binding, and that ball links or control rods are seated correctly. Use incremental link adjustments while trimming to set a true neutral cyclic position and proper collective travel limits.

For upkeep, check the bearing seats and ball link contact areas for wear, replace worn bearings or links as required, and adhere to the helicopter's specified fastener torque values. This product is intended for RC helicopter use only.
