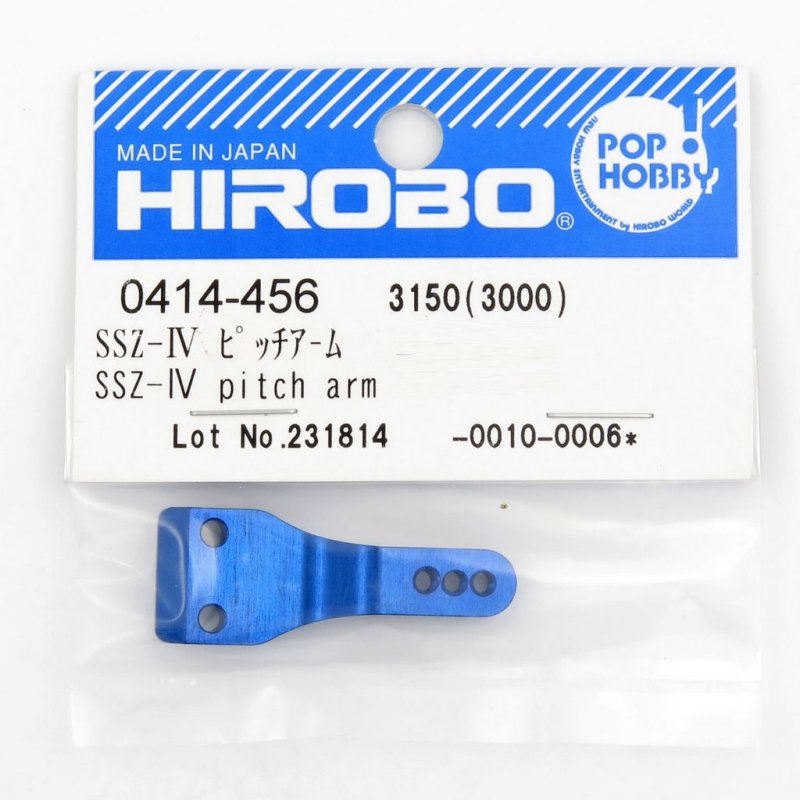

SSZ-IV Pitch Arm for Hirobo - Linkage Control Component HI0414456  [HI0414456]

How the SSZ-IV Pitch Arm Affects Control

This Hirobo SSZ-IV pitch arm (model HI0414456) is provided as a replacement component for SSZ-IV pitch assemblies on compatible Hirobo helicopters. The following summary covers functional behaviour, fitment reminders, and the part's role during tuning without extending compatibility claims beyond SSZ-IV.

The arm's job is to convey servo and swashplate motion into rotor blade pitch change via the linkage system. As a routine inspection item, look for any deformation, loose fasteners, or play at connection points that can introduce control imprecision.

Fitting advice: slot the arm into the SSZ-IV pitch assembly per the helicopter's service instructions, tighten mounting hardware to recommended torque values, and verify the linkage geometry before attempting flight checks. Reset servo neutral points and swashplate centring once installed.

Tuning considerations: the arm provides mechanical consistency for tuning by preserving alignment and minimizing slop. When you alter cyclic or collective gains, confirm the arm operates cleanly and ball joints are correctly seated so that telemetry and handling feedback reflect true tuning changes.

Keep a spare HI0414456 on hand for service intervals on SSZ-IV pitch assemblies and inspect linkage interfaces to retain consistent control response.
