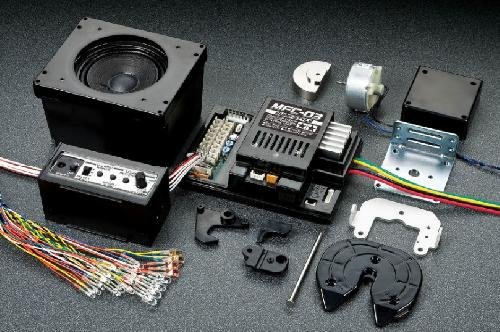

Tamiya 56523 - MFC-03 Euro-Style Multi Function Control Unit  [56523]

Tamiya 56523 as well as multi-function control units which make it possible for different lights, sound and vibration effects in Euro-Style. which adds a complete extra layer of realism to driving, gets an update. This product enables transmitter trim levers to be along with stick control usage, meaning you'll enjoy lights, noises and vibrations coordinated with actions while driving your R/C tractor vehicle model.Engine seems recorded from real European L6 Diesel. Lights, sound and vibration controllable from transmitter. Air sound files expertly recreated. Vibration amounts associated with engine speed for supreme realism. Engine sound changes whenever combined to trailer

Specification:

• Features 33 various kinds of noise, including motor ignition and shutdown, horn, gear modifications, brake system, air sound effects and so on. A 60mm-diameter full-range presenter in a resin instance provides exceptional quality.
• As much as 21 actions may be managed using a 4-channel transmitter. Tamiya/Futaba 4VWD Attack 2.4 GHZ broadcast System 4-channel and 4YWD-2.4G are recommended for most readily useful compatibility.
• Light procedure and volume adjustment are feasible utilizing the transmitter.
• Includes white, red and yellowish high brightness LEDs to replicate truck HID lights with accuracy.
• An ESC happens to be built-in on device, allowing realistic running at suprisingly low rates.
• The MFC unit could be run in three modes: R/C mode with Multi-Function (lights and sounds) down; Multi mode, with R/C and multi-function on; Demo mode, allowing display of lights and noises only.
• Can be utilized for support leg operation when using Item 56505 Motorized Support thighs.
• Can't be used and Item 53909 TLU-01 or Item 53937 TLU-02 LED light devices.
• Needs separately sold 4ch transmitter with fall trims, 4ch receiver and 2 servos (3 if utilizing Item 56505). Tamiya Attack 2.4 GHZ Radio System 4-channel recommended for best compatibility.
• Sound clips x 33 Actions
• Light impacts x 16 Actions
• Procedure x 21 Actions
• Mode x 3 Modes
• Vibration Device

MFC-03 Requirements

• Voltage: 6.6-7.2V
• Usable Temperature : -10 level to 50 degree
• Space Temperature : -20 degree to 50 degree
• Optimum engine present: 60A
• Usable engines: kit-included Type 540 motor,Tamiya tractor truck option components motors.

Required R/C System

• This kit calls for the next items (not incorporated into kit): a 4ch transmitter (self-neutral stick type with lever-type 4ch sliding trims), a 4ch receiver, and 2 servos (3 when using with 56505 Motorized help thighs.)
• Electronic speed controller and receiver battery (6V) are not required.
• Recommended R/C transmitter/receiver devices: Futaba ATTACK 4YWD-2.4G / R204 GF-T or Futaba ATTACK 4WD T4VWD/FP-R114H. *Transmitters with click-touch kind trims might cause difficulty when utilizing with
• Tamiya Multi-Function Control Units.
• If utilizing transmitter other than those suggested above, ensure that is it self-neutral kind and makes use of sliding trim levers. Transmitters without self-neutral system or non-sliding trim levers (age.g. click-touch) cannot understand optimum efficieny.
• Some connectors might not be compatible, or modification might required.
• Never make use of with wheel trigger type transmitters or transmitters without trims.
• PCM receiver, multi-channel receivers cannot be used with this kit.
• Whenever installing this device into mainstream truck models, servo expansion cables could be needed. Use expansion cables (offered individually) to make sure cable size exceeds 50cm.
