Tamiya TB-01- 1/10 RC Enzo Ferrari #58298  [58298]

Tamiya 58298 TB-01- 1/10 RC Enzo Ferrari
Price:
AUD$170.56
Brand:
Tamiya
Model:
58298
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review
Tamiya made 1/10 Enzo Ferrari (58298) TB-01- AWD drivetrain Electric Powered On-Road Touring Cars assembly kit

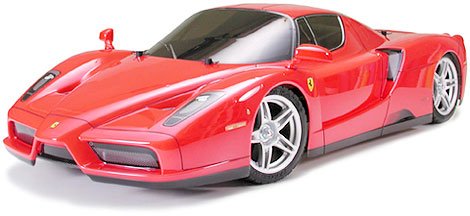

Ferrari's latest sports vehicle flagship, which showed up on countless magazine covers and collected unprecedented attention, the Enzo Ferrari now comes replicated as an R/C vehicle model. The realistically replicated body as been combined with the 4WD high performance TB-01 chassis to cause you to feel just like you're driving the automobile.

Centrally Placed Engine Shaft-Driven 4WD Chassis

TB-01 chassis is shaft-driven 4WD chassis built with a top efficiency centrally placed motor. This chassis additionally features flatly put mechanisms for a minimal center of gravity and less frame reinforced with an increased framework to boost its strength. Furthermore, this model comes with full ball bearings to obtain smooth and high performance operating.


Independent Oil Damper Suspension

Independent double wishbone suspension coupled with high performance oil dampers offer excellent stability to your chassis whenever operating the model. Lightweight gears and aluminum drive shaft come as standard equipment to lighten the framework.


Realistically Replicated Body

The initial kind of the Enzo Ferrari has been reproduced as a polycarbonate body for a striking feel of realism. Part mirrors are split parts to push details even further. The slit type 5-spoke tires are also accurately replicated.


Fundamental Requirements

  • Chassis Type: TB-01
  • Scale: 1/10
  • Total size: 457mm
  • Total width: 202mm
  • Clearance: 7mm
  • Weight Fully-Equipped: 1,650g (Measurement includes TP-S3003 servo, CPR Unit and RC2400SP Battery with RS-540 engine)
  • Wheelbase: 257mm
  • Tread F/R: 159/157mm
  • Chassis Material: ABS
  • Chassis Shape: Bathtube Frame
  • Steering Tie Rod: 3 component
  • Suspension system: Front and Rear Double Wishbone
  • Caster Angle-F/R: 10deg/0deg
  • Camber Angle-F/R: adjustable
  • Toe Angle-F/R: adjustable/2deg
  • Damper: F/R CVAMiniII
  • Drive train: longitudinally mounted motor/shaft driven 4WD
  • Gear Ratio: 7.94:1 (9.91-5.72)
  • Diff. gear system: F/R 3-Bevel
  • Speed Controller: 3-steps Mechanical Speed Controller
  • Tire Width: F/R both 27mm
  • Tire Diameter: F/R both 65mm Tread Pattern: F/R Racing Radials.
  • Motor: RS-540 Type Engine included
