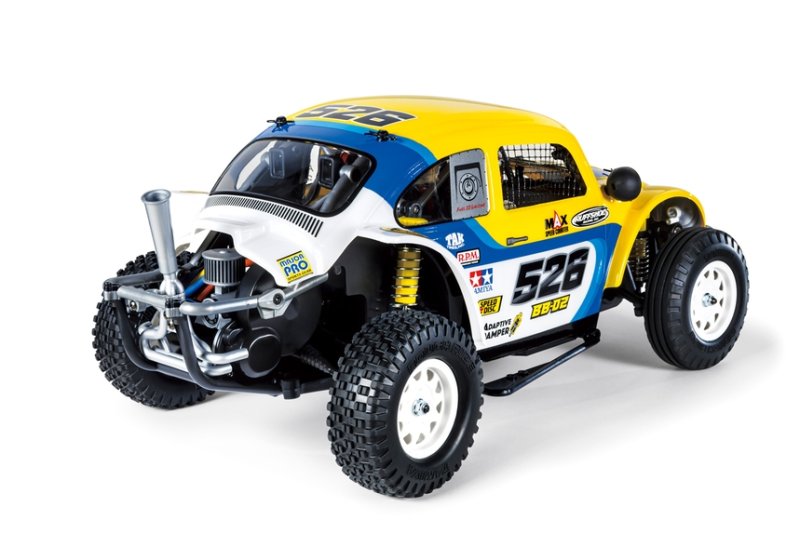

Tamiya 58757 VW Dune Beetle Cross — BB-02 rear-drive buggy with detailed race body
Chassis configuration and drivetrain
The BB-02 chassis architecture in this kit uses a rear-wheel-drive layout that situates the motor behind a lengthwise battery pack for rearward weight bias. The drivetrain is protected within a sealed gearbox which includes a pressure plate ball differential; drive shafts are shielded by joint boots to reduce contamination. The design integrates a tubular roll cage into the floorpan and wheel housings, contributing both to the race-oriented look and to component protection on loose terrain.
Suspension and damper behaviour
Builders receive two choices for the front suspension — front double trailing arms or front double wishbone arms — paired with rear trailing arms. The adaptive CVA-style, oil-filled dampers are engineered to minimise oil leak issues by employing a seal profile that adapts as the piston moves. Full ball bearings throughout the kit improve efficiency, while hex hub wheels wear directional rib front tyres and square-spike rear tyres to achieve a compromise between steering accuracy and traction.
Bodywork, scale feel and accessories
The 1/9 scale polycarbonate body reproduces a race-styled Beetle with pronounced fenders and an open rear deck. Molded elements include light pods and housings for optional LEDs, a window net, exhaust detailing, plus cockpit pieces such as a stick shift and air cleaner. Seated driver and co-driver figures and themed sticker sheets are included to round out the model's presentation without depicting a specific racing outfit.
Recommended user profile
Sold as an assembly kit, the model is aimed at hobbyists who enjoy constructing and finishing models themselves. The BB-02 layout and parts selection prioritise mechanical realism and durability, making the kit suited to those who want an authentic-feeling, heavier-scale buggy rather than an ultra-light competition racer.
Specifications
- Label: Tamiya 58757 VW Dune Beetle Cross
- Scale: 1/9
- Construction Type: Assembly Kit
- Chassis Type: BB-02
- Drive Type: 2WD
- Body Material: Polycarbonate
- Length: 454 mm
- Width: 204 mm (double trailing arm) / 225 mm (double wishbone)
- Height: 180 mm
- Wheelbase: 283 mm
- Differential Type: Pressure Plate Ball Differential
- Suspension: Front double trailing arm and front double wishbone included, rear trailing arm
- Shock Damper: CVA Oil-Filled Adaptive Damper
- Electronic Speed Control (ESC): Not Included
- Motor: Sold Separately (540-size compatible)
- Bearings: Full Ball Bearings Included
Tamiya 58757 VW Dune Beetle Cross provides a rewarding build for enthusiasts who prioritise visible mechanical detail, sealed drivetrain reliability, and a heavier, scale-oriented off-road model.
