TAMIYA Compatible Rear Differential 52T (BBX52S) for BBX/XV01 by GPM  [BBX52S]

TAMIYA BBX BB-01 40cr Steel 52T Rear Complete Differential - GPM BBX52S
Price:
AUD$64.26
Brand:
GPM
Model:
BBX52S
GTIN:
4894538414547
Condition:
Brand New
Write a review
alt="TAMIYA BBX BB-01 40cr Steel 52T Rear Complete Differential - GPM BBX52S" title="TAMIYA BBX BB-01 40cr Steel 52T Rear Complete Differential - GPM BBX52S"
alt="TAMIYA BBX BB-01 40cr Steel 52T Rear Complete Differential - GPM BBX52S" title="TAMIYA BBX BB-01 40cr Steel 52T Rear Complete Differential - GPM BBX52S"

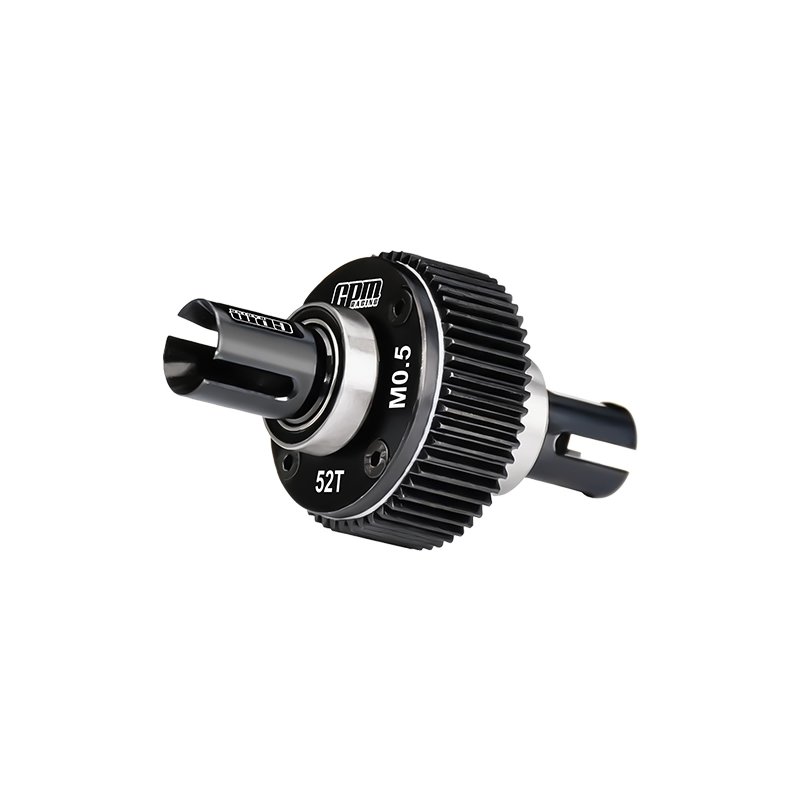

Preassembled 52T steel differential details

This complete rear differential comes assembled for use in selected TAMIYA 1/10 platforms. The BBX52S is intended as a replacement for the BBX BB-01 factory rear differential (part number 54471), converting the original ball-type mechanism into a steel bevel-gear unit manufactured from 40Cr steel with 52 teeth. The assembly is supplied ready to fit and includes slim stainless washers to adjust bearing clearance.

Fitting guidance: remove the two foam spacers when fitting to BBX models; XV01 installs without modification. Note that differential oil is not supplied and must be added during assembly. For setups requiring the same unit at both ends, buy two sets.

Setup tips: use the included 10x12x0.3mm stainless washers to dial in bearing preload, and secure fasteners with medium-strength threadlocker to prevent loosening while running. No additional machining is necessary beyond standard gearbox access for the listed chassis.

Packing includes

  • Rear Complete Differential 52T - 1pcs
  • Stainless Steel Washer 10x12x0.3 - 2pcs

Compatible Models

  • TAMIYA 1/10 BBX BB-01 Chassis-58719
  • TAMIYA XV01
  • TAMIYA TA-06
  • TAMIYA M-07
  • TAMIYA M-08
  • TAMIYA FF-03 (For standard FF-03 cars you must use item 54398 FF03 Gear Case for Gear Differential)
  • TAMIYA TD4
  • TAMIYA TD2

The BBX52S provides a practical, bolt-in steel gear upgrade for compatible TAMIYA 1/10 models, delivering greater gear strength where required; observe the model-specific notes when installing.

Will changing to the BBX52S affect handling?

Switching from a ball-type to a steel bevel differential may alter traction and locking characteristics; tune diff oil viscosity to regain the handling balance you prefer.

How do I set bearing preload correctly?

Use the supplied 10x12x0.3mm stainless washers to remove excess play at the bearings, adding or removing them until the desired preload is achieved.

Is differential oil recommended for tuning?

Yes. The unit ships dry so you can select diff grease or oil viscosity to tailor on-track behavior; experiment to find the best setting for your chassis and surface.

Any prep before first run?

Verify bearing clearance, secure all fasteners with medium-strength threadlocker, and confirm smooth gear mesh before road-testing.
