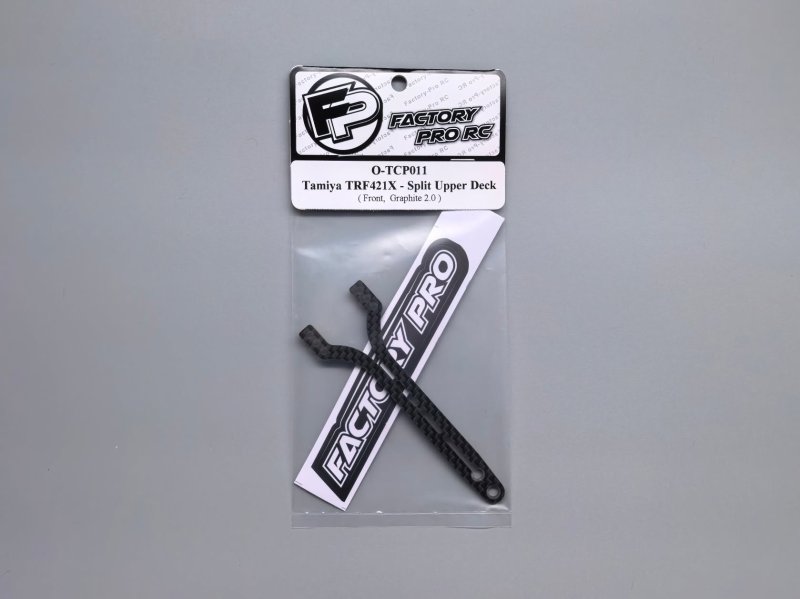

Tamiya TRF421X 2mm Graphite Split Upper Deck Front Upgrade O-TCP011 by Factory Pro  [FP-O-TCP011]

TRF421X split upper deck: impact on handling

This split upper deck front is an aftermarket 2mm graphite front plate crafted for the Tamiya TRF421X platform by Factory Pro, O-TCP011. It is designed as a tuning piece to alter front-end stiffness and the vehicle's transient steering response while leaving suspension geometry unchanged.

Design and role: fitted to the front section of the TRF421X upper deck, the plate acts as a stiffness tuning element to adjust chassis flex characteristics. Swapping to a graphite 2mm front plate is a straightforward method to influence steering precision and the car's reaction entering and exiting corners on various grip levels.

Installation notes: remove the factory front upper deck per the chassis manual, verify that the mating surfaces are flat, and fit the plate using the same mounting points and hardware. Tighten screws evenly, confirm there is no contact with steering linkages or servo horns, and perform controlled track runs to evaluate handling. Tweak damper settings or anti-roll bars incrementally to re-balance after the change.

Compatibility and tuning context: made for the Tamiya TRF421X family and aimed at chassis-level tuning rather than modifying suspension components. Implement the upgrade step-by-step and record handling changes to determine the best setup path.
