TOYOTA LAND CRUISER 60 1:10 KC10 Readyset Crawler 34801T1 Kyosho  [KY-34801T1]

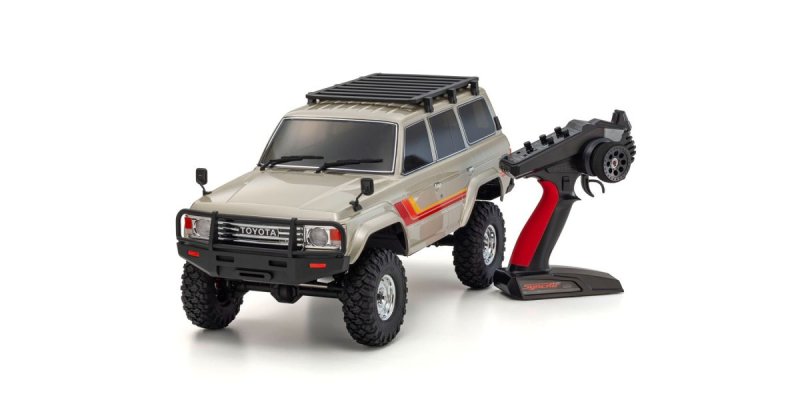

Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1
Price:
AUD$838.16
Brand:
Kyosho
Model:
KY-34801T1
GTIN:
4548565514748
Condition:
Brand New
Write a review
alt="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1" title="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1"
alt="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1" title="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1"
alt="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1" title="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1"
alt="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1" title="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1"

Land Cruiser 60 on Kyosho KC10 (34801T1): Built for scale crawling and trail use

Why the chassis and drivetrain matter for crawling

The Kyosho 34801T1 uses the KC10 pressed-steel main frame and shaft-driven 4WD to emphasize slow-speed traction and stable weight transfer. This mechanical layout is targeted at realistic crawling performance rather than top speed.

Readyset gearbox configuration and DIG details

The KC10 gearbox is capable of housing a 2-speed kit and a DIG mechanism, but the Readyset ships with the two-speed fixed to low and DIG turned off. The DIG option, when installed separately, locks the rear output while preserving front drive to reduce turning radius during tight maneuvers.

Scale presentation and practical mounting

The body captures the classic Land Cruiser 60 profile and includes removable accessories such as a roof rack and rear ladder. Kyosho's clipless mounting approach reduces visible fasteners to maintain a neat scale presentation while allowing easy access for servicing.

Electronics and mechanical fitment provided

Factory assembly includes a pistol-grip transmitter and a sealed receiver; a 550-size G32L 32T brushed motor provides drive, and a 15kg-class high-torque steering servo is fitted for control at low speeds. Users supply their preferred battery and charger separately.

Suitability and intended use

The 34801T1 is aimed at hobbyists and collectors who favour scale realism and intend to use the model for display or slow technical crawling, and at builders who want a crawler-ready platform for optional drivetrain upgrades.

Specifications

  • Label: Kyosho 34801T1
  • Scale: 1:10
  • Chassis: KC10 pressed-steel main frame
  • Drive: Shaft-driven 4WD
  • Length: 552 mm
  • Width: 236 mm (excluding mirrors)
  • Width (including mirrors): 255 mm
  • Height: 248 mm
  • Wheelbase: 317 mm
  • Tread: 208 mm (F/R)
  • Weight: Approx. 3,080 g (with 2-cell LiPo installed)
  • Tires: 110 x 37 mm
  • Gear Ratio: 49.1:1 (21.1:1 in high gear with CLW001)
  • Motor: G32L brushed motor (550-size 32T)
  • Electronic Speed Control (ESC): Not Included

The Kyosho 34801T1 Readyset combines faithful Land Cruiser 60 styling with a crawler-oriented KC10 platform to satisfy both display collectors and trail enthusiasts.

The pressed-steel construction is robust and provides straightforward access to internal components, making routine maintenance and the fitment of optional gearbox kits manageable for experienced hobbyists.
The included receiver is housed in a sealed case to resist dust and light moisture, but for wet conditions consider upgrading to fully waterproof servos and ESCs if you plan heavy off-road use.
When installed, DIG improves maneuverability by locking the rear output while keeping front drive engaged, which shortens the turning circle and helps in tight technical sections.
Yes. The Readyset's motor and servo are standard sizes, allowing straightforward replacement with higher-performance brushed or brushless motors and stronger servos to suit personal preferences.
The shell retains the correct Land Cruiser 60 proportions with separate trim pieces like the roof rack and ladder, and clipless mounting keeps the display lines clean for photography and shelf presentation.
Absolutely. The Kyosho 34801T1 provides a solid platform for customisation, from drivetrain kits to scale accessories and electronics upgrades for more refined crawling behavior.
