Upgrade Swash Plate for SRB Helicopters - Hirobo HI0312001  [HI0312001]

Role of the swash plate in flight control

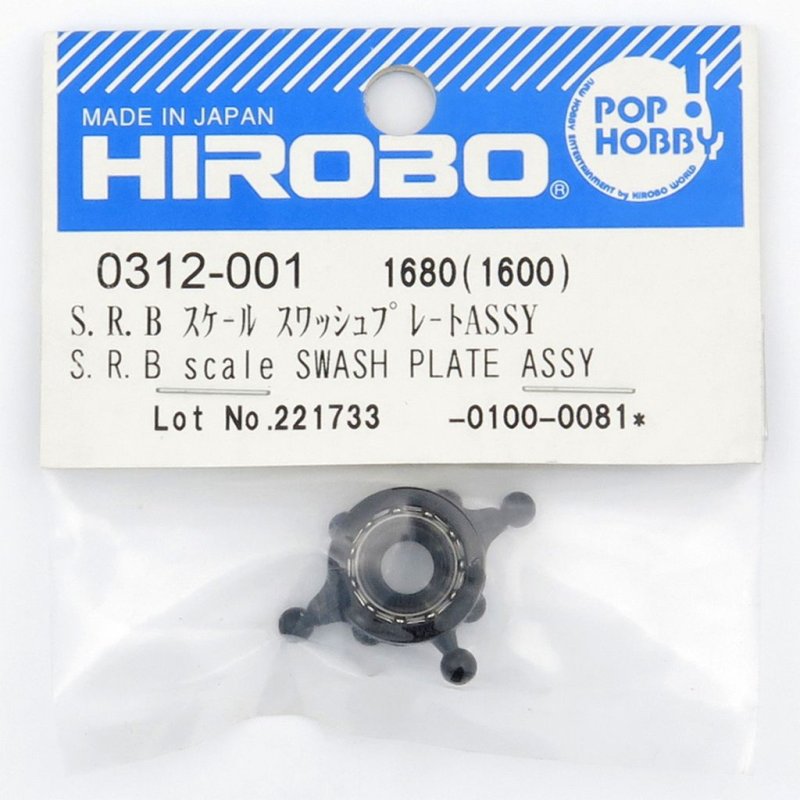

This Hirobo HI0312001 swash plate assembly is an RC-scale replacement intended for SRB series scale helicopters. As the rotorhead subassembly, it directs servo inputs into the collective and cyclic motions required for flight control and is supplied for maintenance and tuning tasks.

Install this assembly when overhauling the rotorhead or swapping out aged swash components on SRB scale helicopters. Proper installation normally involves setting control link lengths and checking pitch and cyclic travel at the servo outputs; rely on your helicopter's service instructions for disassembly and safe reassembly. The summary here concentrates on the component's role in link geometry and tuning rather than stepwise assembly procedures.

After fitting, verify swash center, servo endpoints, and pitch limits, and perform ground control checks to ensure the rotor responds predictably before flying.
