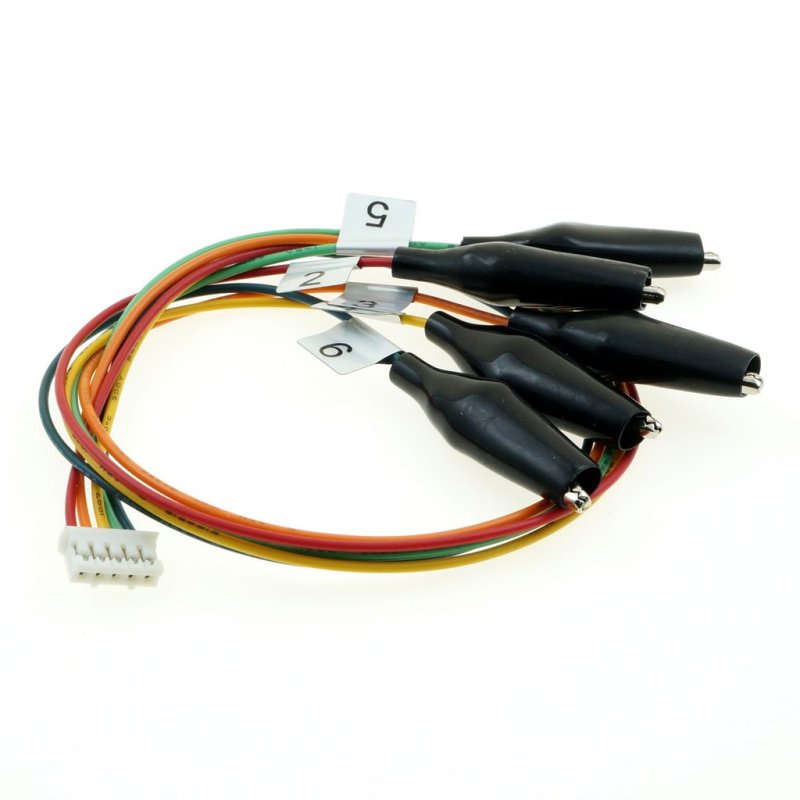

Voltage Sensing Harness for CDR5000 Charger Futaba FU6A16801  [FU6A16801]

Harness for precision voltage monitoring

This Futaba FU6A16801 terminal harness cord is an accessory that links battery packs to a CDR5000 charger to enable accurate voltage sensing. It functions as a dedicated voltage lead, routing pack voltage to the charger without requiring changes to packs or charger enclosures.

The harness is matched to the CDR5000 charger, so check the charger model before fitting. It serves as a plug-in lead for monitoring during charging, carrying out battery checks, and bench tuning where clear pack voltage readouts are needed.

Fitting is simple: insert the harness into the charger’s voltage sensing terminal and connect the matching battery plug to the pack’s voltage tap or main terminals as appropriate for your battery type. Keep connectors clean, secure connections, and avoid cable strain to preserve measurement accuracy.

When tuning and maintaining vehicles, the harness helps with run-to-run voltage checks, validating cell balance results shown by the charger, and keeping a consistent sensing method while swapping packs on the workbench.
