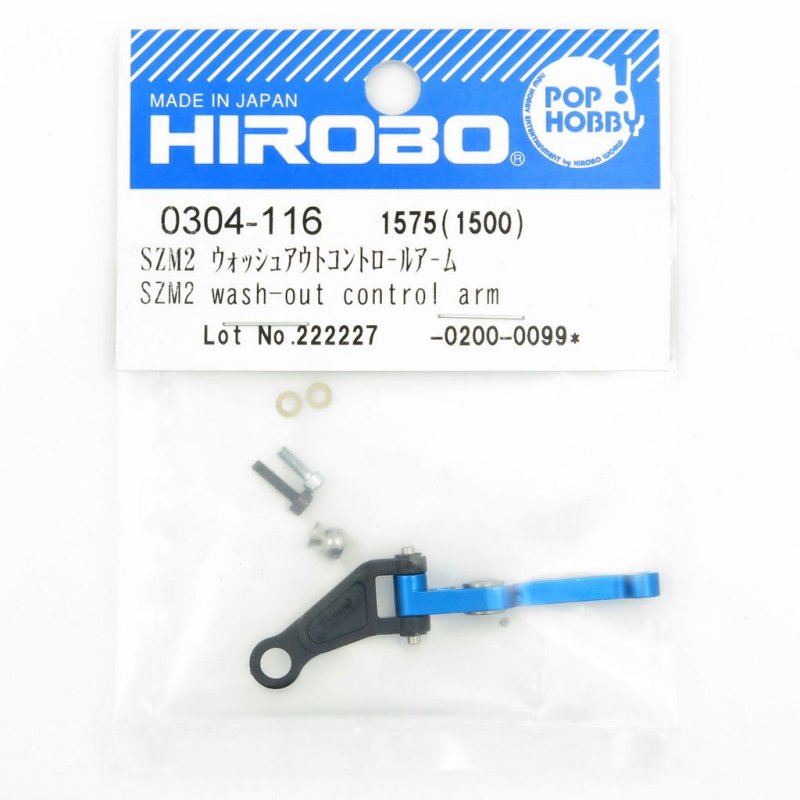

Wash-Out Linkage Arm for EMBLA SZM2 HI0304116 - Hirobo  [HI0304116]

Wash-out linkage arm for EMBLA SZM2 explained

This component is an RC wash-out control arm specified for the EMBLA SZM2 family and carries the Hirobo HI0304116 designation. It functions as the linkage element that translates servo inputs into controlled wash-out movement at the rotor head and tail linkages, intended as a replacement or spare for assemblies referencing the EMBLA SZM2 parts.

Installation notes: verify the current linkage geometry before removal, reuse original ball cups and hardware when fit, and confirm that the arm moves freely through its complete travel after installation. Use appropriate hex drivers and ensure clearance from cyclic and tail linkages at all collective positions. Avoid overtightening screws to prevent binding issues.

Tuning role: deterioration or looseness in the wash-out arm affects the mix of cyclic and tail responses; installing a new arm helps restore predictable wash-out dynamics and dependable tail control while hovering and performing maneuvers. After replacing, conduct cautious hover checks to validate trim and control response before full-rate flights.
