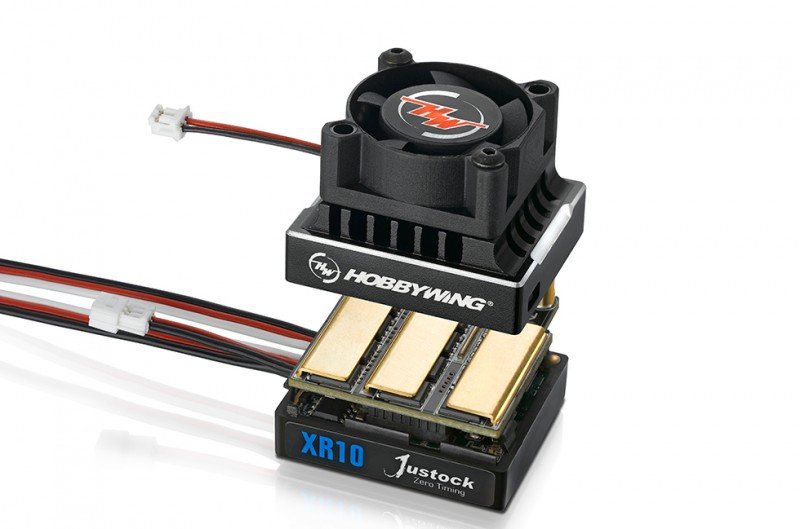

HOBBYWING XeRun XR10 Justock - 30112000  [HW-30112000]

HOBBYWING XeRun XR10 Justock - 30112000
Price:
AUD$86.85
Brand:
Hobbywing
Model:
HW-30112000
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC category
Write a review
alt="HOBBYWING XeRun XR10 Justock - 30112000" title="HOBBYWING XeRun XR10 Justock - 30112000"
alt="HOBBYWING XeRun XR10 Justock - 30112000" title="HOBBYWING XeRun XR10 Justock - 30112000"
alt="HOBBYWING XeRun XR10 Justock - 30112000" title="HOBBYWING XeRun XR10 Justock - 30112000"
alt="HOBBYWING XeRun XR10 Justock - 30112000" title="HOBBYWING XeRun XR10 Justock - 30112000"

Zero-timing Design

The XR10 JUSTOCK ESC is created especially
for Zero-timing rushing class. Its timing system has
been totally set to ZERO degree. Utilizing the
exact same branded motor and winding can certainly make sure
every racer has comparable energy system for
100percent reasonable and competitive race.



Tall Reliability & Durability

Reliable equipment along with advanced level pc software
technology allows the XR10 JUSTOCK to not just
provide high power production, but in addition overload
security of this ESC circuit.



High efficient Heat
Dissipating System

The modified heatsink, which advances the
area, combined with HOBBYWING
patented copper heat-conductive dishes which
are attached to the MOSFET board allows the
interior heat to be quickly utilized in the
heatsink for dissipation. Utilizing the
high-performing detachable cooling fan, a
highly dependable heat transfer system for
maximum cooling is achieved.



Tiny Footprint

With its compact design, the XR10 JUSTOCK fits
many framework from 1/10th touring automobiles, 1/12th pan
vehicles and F1.



Regular Firmware Updates Free
of Charge

You can upgrade the XR10 JUSTOCK utilising the Hobbywing USB
LINK software applications, a multifunction LCD system package and a laptop computer.
Hobbywing updates its ESC firmware frequently providing you with
upgraded features more often whenever available





Product Specification


Type

  • Scale : 1/10th
  • Brushed/Brushless : BL
  • Sensored/Sensorless : SD
  • Waterproof : No

Specifications

  • Cont./Peak Present : 60A/380A
  • Input : 2-3S LiPo/6-9 Cells NiMH
  • BEC manufacturing : 6V@2A

Wires & Connectors

  • Input cables : Blue-14AWG-200mm*1/Black-14AWG-200mm*1
  • Output Wires : Red-14AWG-200mm*1/Yellow-14AWG-200mm*1/Orange-14AWG-200mm*1
  • Input Connectors : No
  • Output Connecotors : No

Fan

  • Size : 25x25x10mm
  • Voltage quantity : 5-8.4V
  • Powered by : Powered by BEC

ESC Programing via

  • SET Button on ESC : Supported
  • LED Program Box : Supported
  • LCD Program Box : Supported
  • WiFi Module : Supported
  • Programming Wire : Programming/Throttle Wire

Firmware

  • Firmware Upgrade : Supported

Size & Weight

  • Size : 33.0x28.0x31.5mm
  • Weight : 46g

Applications

  • Motors : SL BL Motors
    SD BL Motors
  • Vehicles : 1/10th,1/12thTouring Car/Buggy Competitions (specially inventory Class)
  • KV Rating/T Count : 2S LiPo: 1/10th Touring Cars≥8.5T, 1/10th Buggies≥11.5T
    3S LiPo: 1/10th Touring Cars≥13.5T, 1/10th Buggies≥17.5T
    3650 Motors
