Highly Integrated

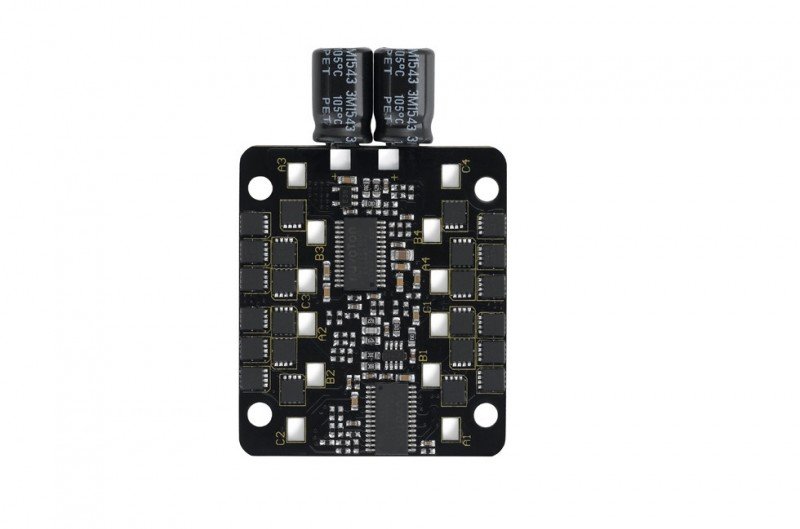

This XRotor 4IN1 Micro ESC not just includes 4 high-performance 20A ESCs,
1 integral BEC, but additionally manufacturing ports for powering peripherals like FC, camera,
and a slot for FC checking present and voltage immediately. The very integrated
structure makes the installation and wiring simple and easy clean.
Direction Reversal via TX
Rotation method of each engine could possibly be set via transmitter.
This saves the problem of re-soldering/re-connecting after connected/soldered motors to
the ESC easily and discovered motor runs backwards.
Quality Components
The using high end 32-bit supply processors
(because of the operating frequency all the way to 48MHz),
integral drive ICs, brought in quality MOSFETs,
3-ounce copper and 6 degrees of PCBs guarantees less temperature,
greater effectiveness and rapider response.
Oneshot125, Oneshot42 & Multishot Modes eager!
This Xrotor 20A 4IN1 Micro ESC not only supports
regular throttle signals (utilizing the regularity all the way to 621Hz),
Oneshot125 (125-250μs) high-speed throttle signals
(with all the real-time regularity entirely to 3.8KHz),
and Oneshot42 (42-81μs) and Multishot (2-25μs) super
high rate throttle signals. All this makes conversation
between FC and ESC more agile, throttle linearity smoother,
and throttle effect rapider.
DEO Technology/Active Freewheeling
The DEO (Driving Efficiency Optimization) technology
implemented in the ESC has multiple benefits:
● Active braking. Whenever reducing the throttle quantity, the engine will
decelerate quickly. This feature enables pilots to easier
perform all maneuvers like razor-sharp turns, altitude changes,
and unexpected braking.
● greater driving effectiveness, longer journey time.
● Lower ESC temperature and a reliable procedure.
Engine Lock-up Protection
This XRotor 20A 4IN1 Micro ESC decreases its production to motor instantly
when it detects the engine shaft is locked up.
Splash-proof
The whole circuit board and all kinds of the components on
it went through nano-coating treatment;
this may result in the XRotor 20A 4in1 Micro ESC splash-proof.
Specifications
- Cont./Peak active : 12A×4/18A×4
- LiPo Cells : 1-4S LiPo
- BEC manufacturing : 5V,1A
Wires & Connectors
- Output cables : solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : HW Special Program for FPVs
- ESC Programming : Supported
- Stick Programming : Transmitter
- DEO : Supported
- Throttle quantity Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- Timing : perhaps not Supported
- Motor Rotation : Supported
Size & Weight
- Size : 38.1x37.9x5.3mm
- Weight : 8g
