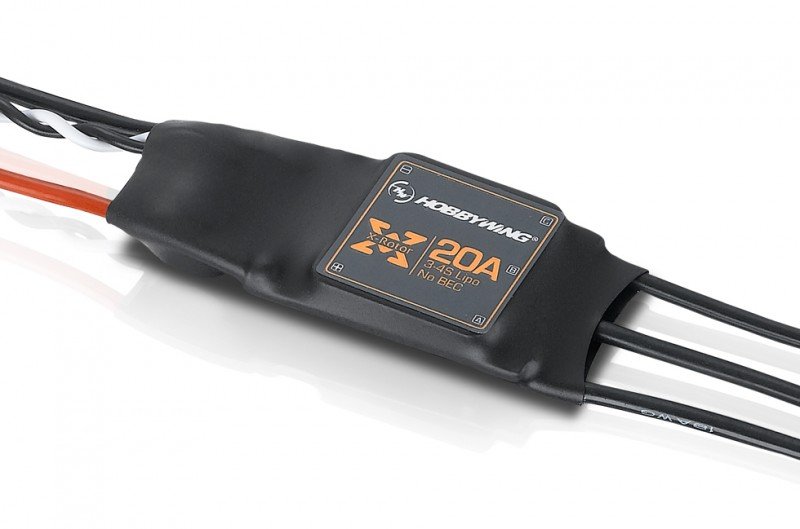

HOBBYWING XRotor 20A(Asian Version B) - 30901004  [HW-30901004]

HOBBYWING XRotor 20A(Asian Version B) - 30901004
Price:
AUD$21.47
Brand:
Hobbywing
Model:
HW-30901004
Condition:
Brand New
Write a review
alt="HOBBYWING XRotor 20A(Asian Version B) - 30901004" title="HOBBYWING XRotor 20A(Asian Version B) - 30901004"

Rapid Throttle Response

Dedicated system for multi-rotor ESCs, which is much better than different open-source
programs, greatly improves throttle reaction.


Very easy to Use

All settings except the "Timing (adjustable between tall and Intermediate)"
are preset, making use simple, extremely smart and adaptive.


Less Signal Interference

The twisted-pair throttle sign cable efficiently decreases disturbance produced
in alert transmission and makes trip more stable and dependable.


Super minimal Internal Resistance

Good quality MOSFETs used by this XRotor 20A ESC make
internal resistance low but current stamina high.


Super High Throttle Signal

Compatible with different flight-control systems and aids a
throttle signal frequency all the way to 621Hz.



Specifications

  • Cont./Peak Current : 20A/30A
  • LiPo Cells : 3-4S LiPo
  • BEC manufacturing : No

Wires & Connectors

  • Output cables : No
  • Input Connectors : No
  • Output Connectors : 3.5mm Gold Connectors (Female)
  • Throttle number Calibration : Supported
  • Stick Programming : Supported
  • DEO : not Supported
  • OneShot Mode : perhaps not Supported
  • Timing : Supported
  • Light colors : maybe not Supported
  • Motor Rotation : not Supported

Size & Weight

  • Size : 50.0x21.6x12.0mm
  • Weight : 15g

Applications

  • 330/450 Course Multirotors
