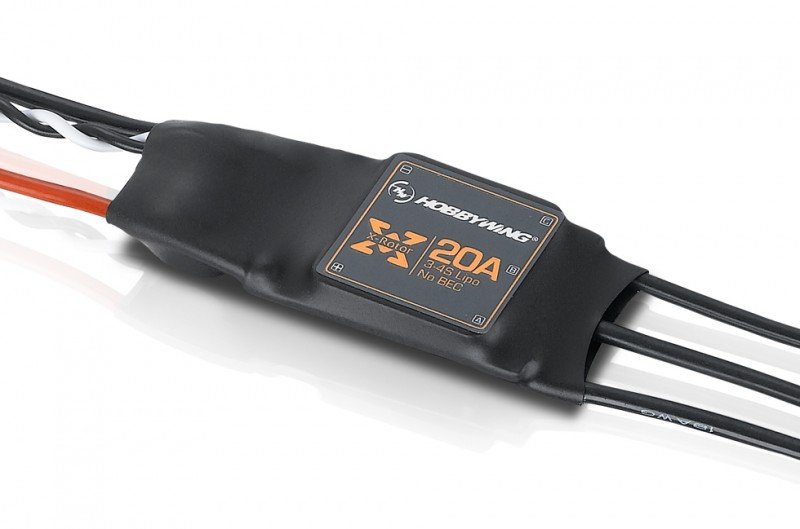

Hobbywing 30901005 XRotor 20A ESC Flight-Ready ESC [HW-30901005]

HOBBYWING XRotor 20A(International Version B) - 30901005

Price:

AUD$0.00

Brand:

Hobbywing

Model:

HW-30901005

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the

R/C Models - System - Drone System

Precision throttle control from the XRotor 20A

The Hobbywing XRotor 20A ESC, model number 30901005, focuses on delivering precise throttle behaviour for multirotor pilots. Its control routines and hardware work together to provide steady response across common flight scenarios.

Core features for dependable flying

Low Internal Resistance: Built with robust MOSFETs to keep resistance low while handling continuous current loads.
Improved Signal Stability: The twisted-pair throttle lead reduces signal interference for more reliable command transfer.
High Compatibility: Accepts throttle input up to 621Hz to match a wide range of flight controllers and receivers.
Preset Configurations: Delivered with preset parameters to make installation quicker, while offering timing adjustment if needed.

Specifications

Continuous/Peak Current: 20A/30A
LiPo Cells: 3-4S
BEC Output: None
Output Connectors: 3.5mm Gold Connectors (Female)
Size: 50.0x21.6x12.0mm
Weight: 15g

A practical ESC for builders who want quick setup and reliable throttle performance in 330/450 class multirotors.

Does this unit include a BEC output?

No. This ESC does not provide a BEC output and requires an external power source for onboard electronics if needed.

Are there factory presets or do I need to program it?

The ESC ships with preset parameters to simplify installation. Timing remains adjustable for fine tuning to match your motor and props.

How does the twisted-pair signal cable help?

The twisted-pair throttle cable lowers electromagnetic interference, improving signal clarity between your receiver and the ESC.
