D-MAX Hiroshi Suzuki Signature Aluminum Motor Mount Kit - SD-304DOP for Enhanced Cooling by Yokomo  [SD-304DOP]

Yokomo SD-304DOP Aluminum OpTion Motor Mount
Price:
AUD$22.78
Brand:
Yokomo
Model:
SD-304DOP
GTIN:
3888
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
Spares / Hop-ups - Yokomo - DP category
Write a review

Durable aluminum motor mount solution

The Yokomo SD-304DOP is an aluminum option motor mount developed for the D-MAX Hiroshi Suzuki Signature chassis. It expands the range of backlash adjustment compared with standard mounts, enabling finer gear mesh tuning across a wider selection of spur and pinion sizes without changing the motor's chassis attachment.

Design changes include a slimmer motor clamp heat sink profile so a motor heat sink with a small fan can be accommodated, plus an aluminum motor cam for more durable backlash control. The mount is supplied as a kit that includes the clamp, cam, spring and the fasteners needed for fitment.

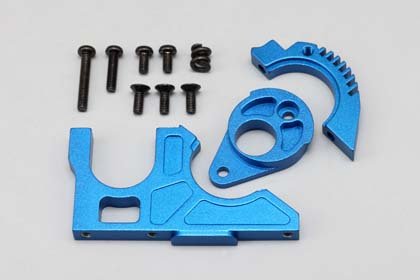

Packing includes

  • Motor Mount - 1 pcs
  • Motor Clamp - 1 pcs
  • Aluminum Motor Cam - 1 pcs
  • Spring - 1 pcs
  • 3 x 6mm button head screw - 2 pcs
  • 3 x 12mm button head screw - 1 pcs
  • 3 x 18mm button head screw - 1 pcs
  • 3 x 8mm countersunk screw - 3 pcs

Specifications

  • Item: Aluminum option motor mount kit
  • Material: Aluminum
  • Model Number: SD-304DOP
  • Compatibility: D-MAX Hiroshi Suzuki Signature

A solid upgrade for enthusiasts seeking tougher backlash components and greater clearance for active motor cooling systems, helping preserve chassis geometry while improving serviceability.
Remark :
Due to limited stock availability, please notice that some Yokomo items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

How does this mount change cooling capability for the motor?

By reducing the clamp profile, the mount creates extra room around the motor so a heat sink fitted with a small fan can be used, enhancing cooling without needing special motor housings.

Will this help with mesh stability during heavy loads?

Yes. The aluminum motor cam improves resistance to wear and helps maintain set backlash under higher torque and repeated load cycles, giving steadier mesh during demanding runs.

Is any extra hardware required to install on the D-MAX chassis?

No additional hardware is normally required; the kit contains the mount, clamp, cam, spring and the listed screws needed for direct installation on the D-MAX Hiroshi Suzuki Signature mounting points.

Does the mount allow for quick gear changes?

The expanded backlash range lets you test a broader range of spur and pinion combinations without shifting the motor position, which speeds up gear ratio experimentation.
